Usage Report

Creating a Usage Report

1. Open the Reports menu.
2. You will see three tabs: Generated Reports, Custom Reports, and Compare.
3. Enable Settings Mode (top-right corner).
4. Choose Generated Report.
5. You will see different types of reports (highlighted in yellow).
6. Click “Create Usage Report”.
7. A form will slide up where you need to enter:
   • Name
   • Correction Factor
   • Unit
   • Workspace
   • Device
   • Parameter (e.g., RPM, Current, Frequency, Heat Sync Temp)
8. Click “Create” to generate the report.

Updating or Deleting a Usage Report

• To edit a report, click the ✏️ Edit Icon.
• The same form will appear, allowing you to make modifications.
• After updating, click “Update” to save changes.
• To delete a report, click the 🗑️ Delete Icon.

Directions to Use

1. Hover over the created usage report to see “View Details” (highlighted in green).
2. Click “View Details”.

3. A new page will appear where you can:
   • View usage reports based on From/To Date.

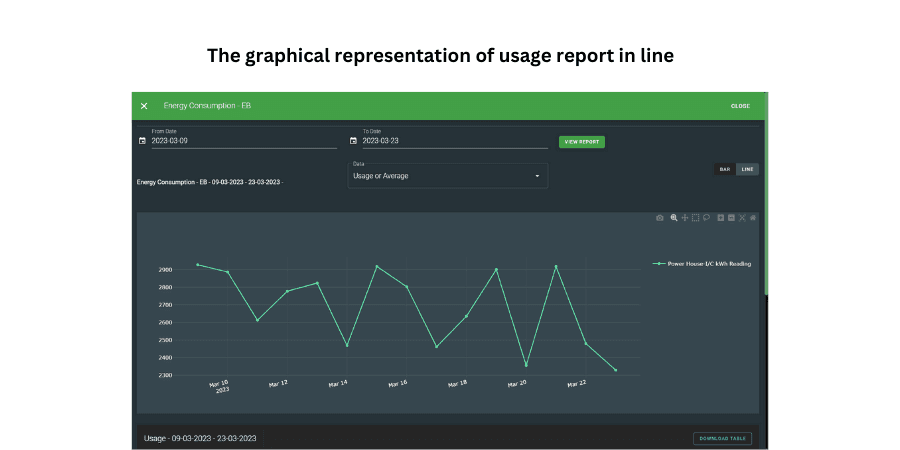

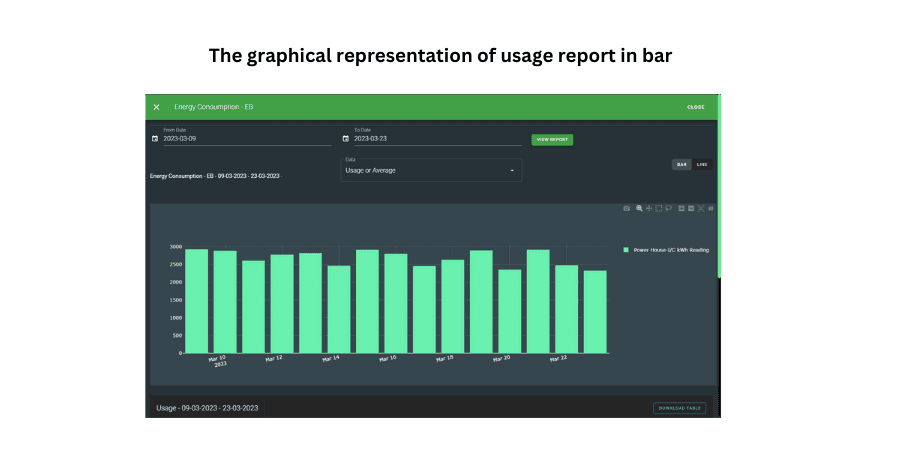

   • Display the report as a Line Chart or Bar Chart.
   • Download the report as a PDF using “Download PDF”.
4. Below, you will see a table listing the date and kWh usage.
5. The table can also be downloaded as a PDF using “Download Table”.
