Adding a Machine Widget to the Dashboard View

Steps to add a Machine Widget to the Dashboard:

1. Click on Choose Type and select Machine.
2. Choose the Workspace.
3. Select the Machine.
4. Click on Add Machine.
5. After adding the Machine, all the parameters tagged to the machine are displayed. Clicking on the widget will show:
   • Active Energy consumption (kWh)
   • Apparent Energy consumption (kVAh)
   • View data over 30 Days, 180 Days, or 365 Days.
6. Below the Energy consumption graph, an Energy Consumption Heatmap is visible, which can be viewed for 30 Days, 180 Days, or 365 Days.
7. Click on Machine Parameters to see the details of parameters tagged to the machine.
8. Hover on the Featured Params and choose an option:
   • View Details
   • Remove from Featured (Removes the selected parameter from the Machine Parameter widget).
9. Hover on Other Parameters and choose an option:
   • View Details
   • Add to Featured (Adds the selected parameter to the Machine Parameter list displayed on the Dashboard).

Images

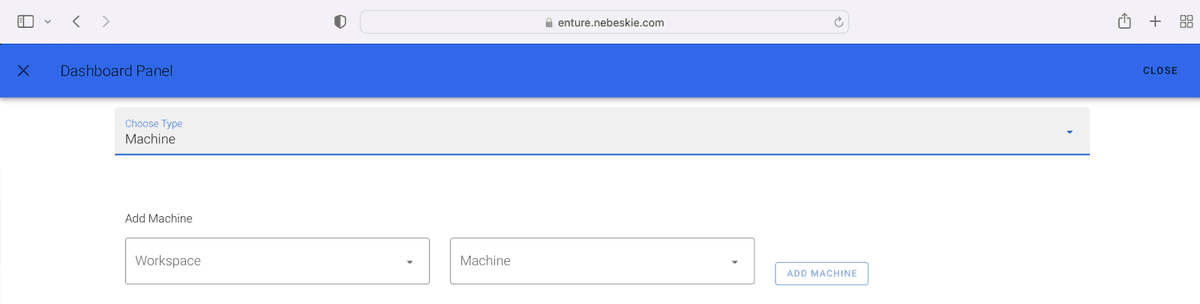

Fig 1: Configuration screen for Machine Widget

Fig 2: Machine Widget view in Dashboard

Fig 3: Graphical representation of kWh and kVAh and Heatmap

Fig 4: Adding parameters to Featured Params
