Actions & Triggers

Enture Triggers are event-driven. These triggers are targeted by the Enture Edge based on threshold values. Each trigger can be assigned multiple actions. When the triggers are activated based on the threshold value and wait time, the attached actions are executed. Triggers can be attached to parameters, and whenever the parameter meets the trigger conditions, the trigger gets activated.

Enture Actions are tasks that the system can execute. These actions are generally attached to triggers to create automation.

• Multiple actions can be attached to a trigger.
• Multiple triggers can be attached to any parameter.
• Multiple parameters can use the same trigger.
• The create options are available on the Actions & Triggers page (Settings mode should be on).

Creating a Trigger

1. Turn on settings mode.
2. Click the Create Trigger button.
3. Enter the name of the trigger.
4. Select the operator from the dropdown (Greater than, Modulus greater than, Lesser than, Modulus lesser than, Equal to, Modulus equal to).
5. Enter the target threshold value and wait time (in seconds).
6. Click Submit to create the trigger.
7. The new trigger will be displayed in the Triggers List with an ID.

Creating an Action

1. Turn on settings mode.

2. Click the Create Action button.

3. A tab will appear where you can:

   • Select the action type.
   • Enter the action name.
   • Each trigger can contain multiple actions.

4. The Action Type dropdown provides these options:

   • Send Notifications - Sends notifications to the selected group(s).
   • Write Parameter - Writes data to another parameter (writable parameters only). The parameter can be selected by choosing the workspace and device.
   • Relays - Switches a relay connected to the Enture Edge device On/Off. Choose the Relay Type (Onboard or External based on deployment).

5. Click Submit to create the action.

6. On successful creation, the action will appear in the Actions List with an ID.

Attaching & Deleting Actions from Triggers

1. Click the dropdown button of the created trigger.
2. Click the plus button.
3. Select the action to attach from the dropdown.
4. Click Add Action.
5. The action will now appear in the Attached Actions List under the trigger.
6. To delete an attached action, click the delete icon.

Deleting an Action or Trigger

1. Click the dropdown arrow of the chosen trigger/action from the list.
2. To delete, click the delete icon.
3. To modify, click the pencil (edit) icon.

Attaching & Deleting Triggers from Parameters

1. Turn on settings mode.
2. Choose devices from the menu.
3. Navigate to the device page and select your workspace.
4. Locate the parameters.
5. Select the parameter where you want to attach triggers.
6. Hover over the parameter to see the View Details option.
7. Click View Details to open the parameter details.

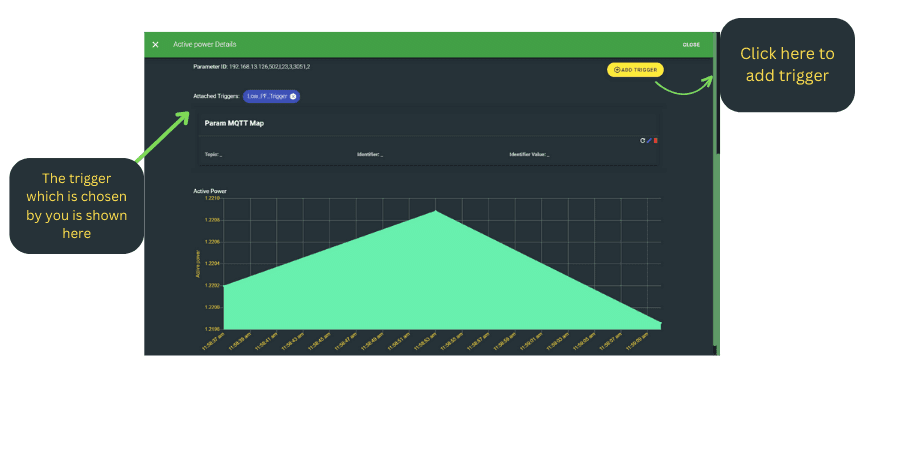

8. Click the Add Trigger button (highlighted in yellow).
9. Select a trigger from the list and click Add.
10. You will see a success message: “Trigger Added”.
11. The newly attached trigger will appear in the Attached Triggers List.
12. To delete a trigger, click the cross icon next to it.
13. You will see a success message: “Trigger Removed”.
