Shift Based Usage Sheet

This sheet allows configuration of chosen shifts and machines across various processes to be added to the sheet.

How to Create a Shift Based Usage Sheet

To create a Shift Based Sheet, click on the “Shift Based Usage Sheet” tab.

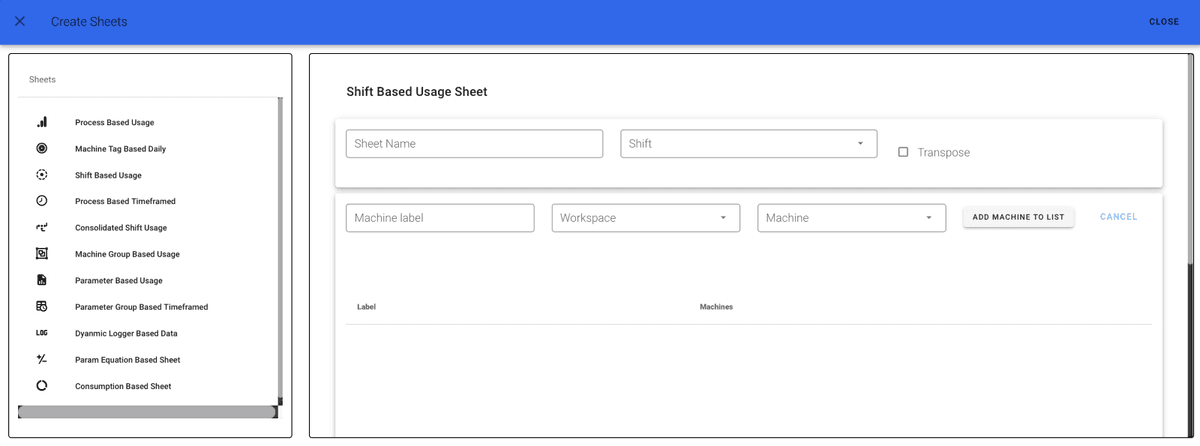

A page like the one below will appear:

Step 1

Give your sheet a name and select your shift.

To add a machine:

• Fill in the machine label
• Select your workspace and machine
• Click the “ADD MACHINE TO LIST” button
  Your machine will be added.

Step 2

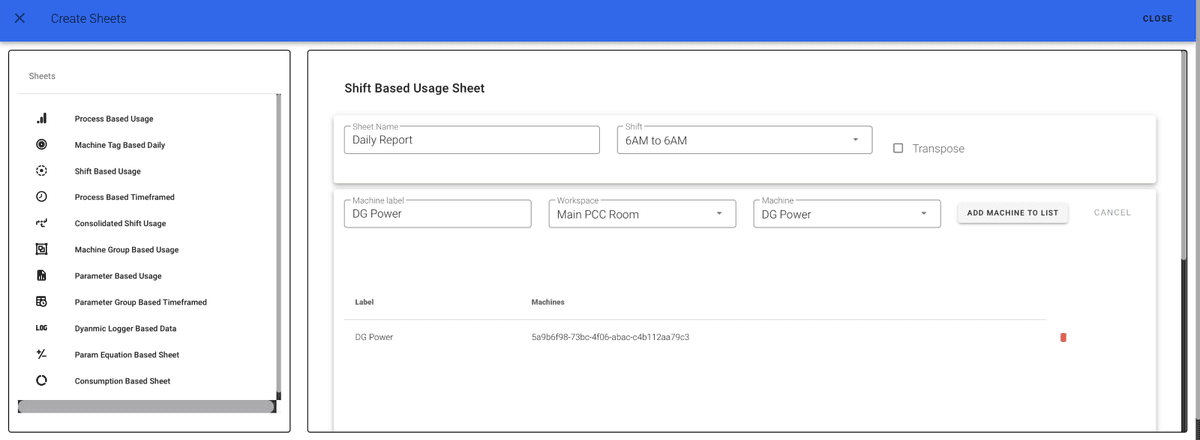

The page will now look like this:

Step 3

To add tag types to the machines:

• Fill in the Label and select the Tag Type
• Click the button, then click “ADD TAG TYPES TO LIST”
• Finally, click Submit

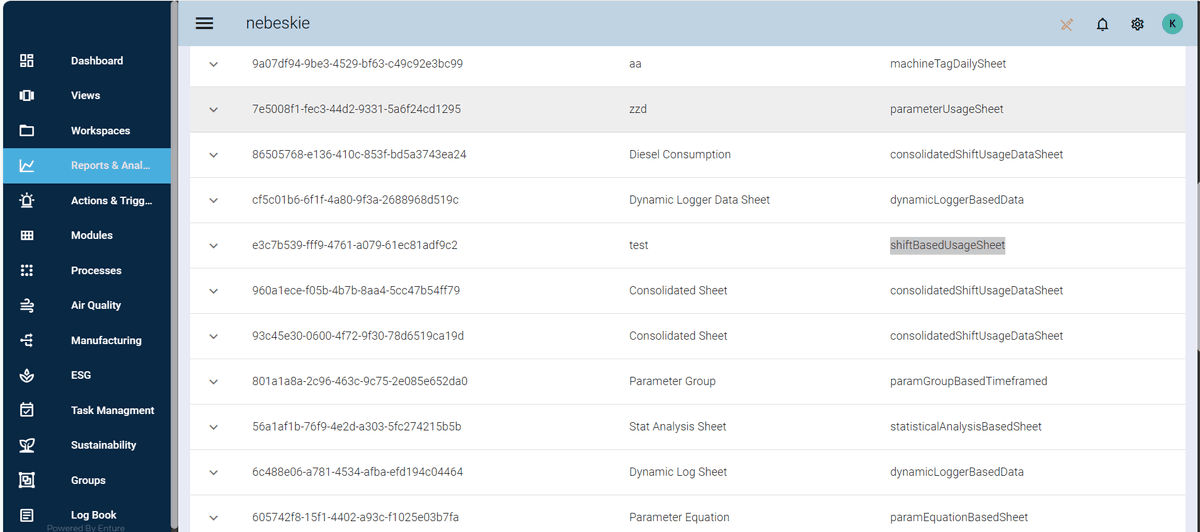

A fully created Shift Based Usage Sheet will look like the above.
