Trend and Analysis Tools

Trend and Analysis Tools is a feature for analyzing the parameters of a machine or device and represents the reports in the way of data visualization.

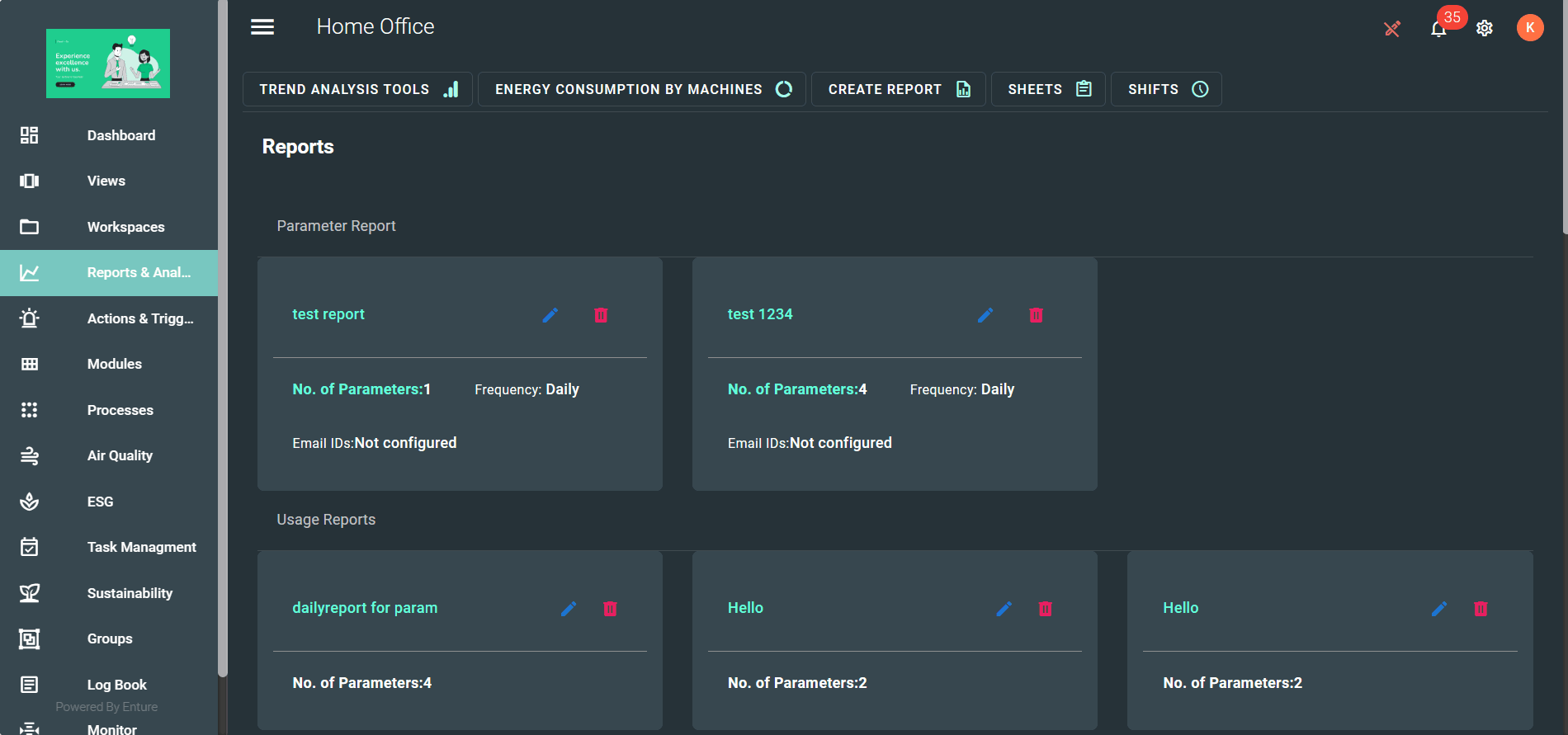

From the given “Reports and Analysis” page, just click on the TREND AND ANALYSIS button.

Reports & Analysis With Settings Mode

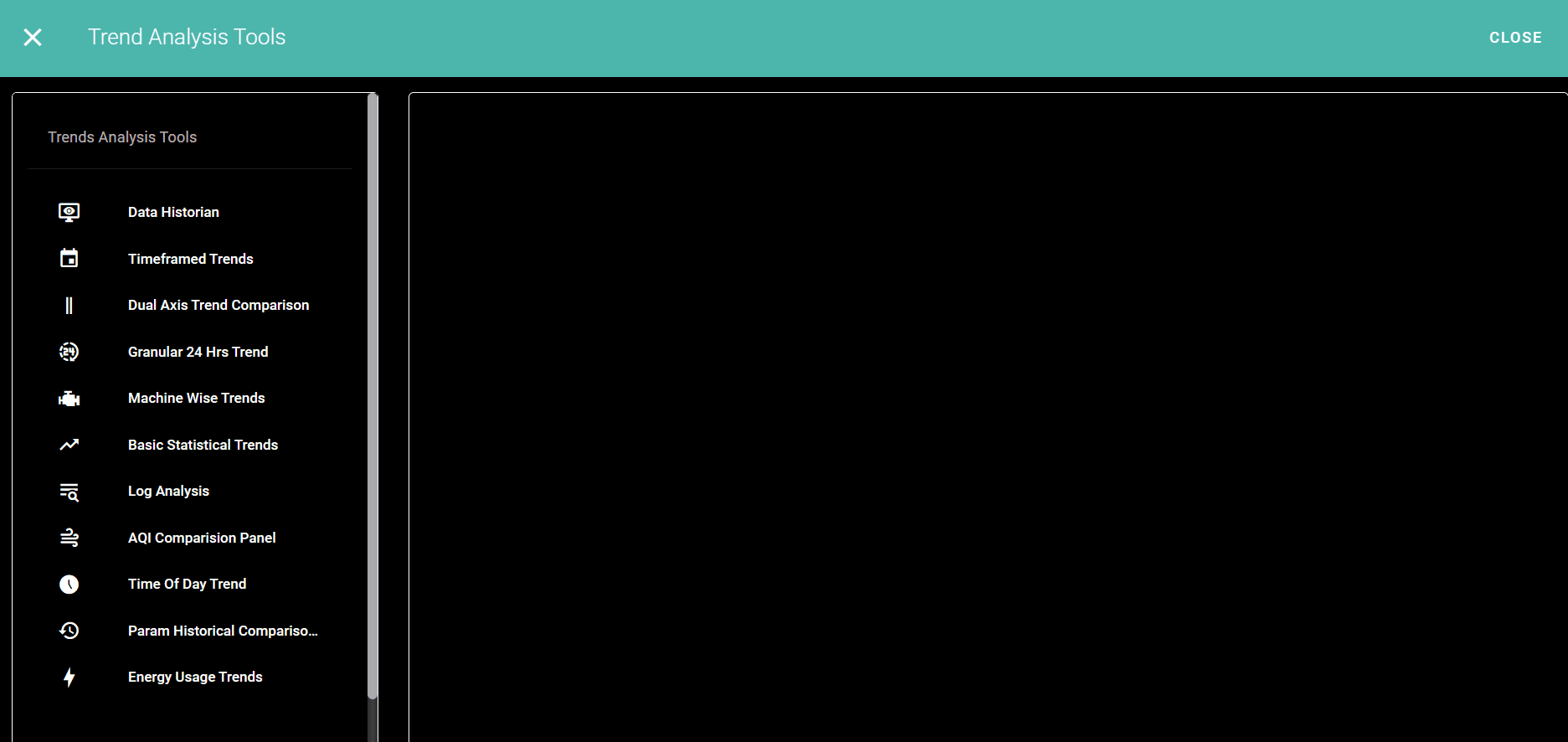

Then you will receive a list of tools with their forms from the given step (like a ‘Select Parameter’ dropdown), and the “TREND AND ANALYSIS” page will look like this:

Trend & Analysis

So, the listed Trend & Analysis tools are:

  • Data Historian
  • Timeframed Trends
  • Dual Axis Trend Comparison
  • Granular 24Hrs Trend
  • Machine Wise Trends
  • Basic Statistical Trends
  • Log Analysis
  • AQI Comparision Panel

Data Historian

Data Historian is feature to analyse the historic data of some parameters in Machine or Device in a Workspace.

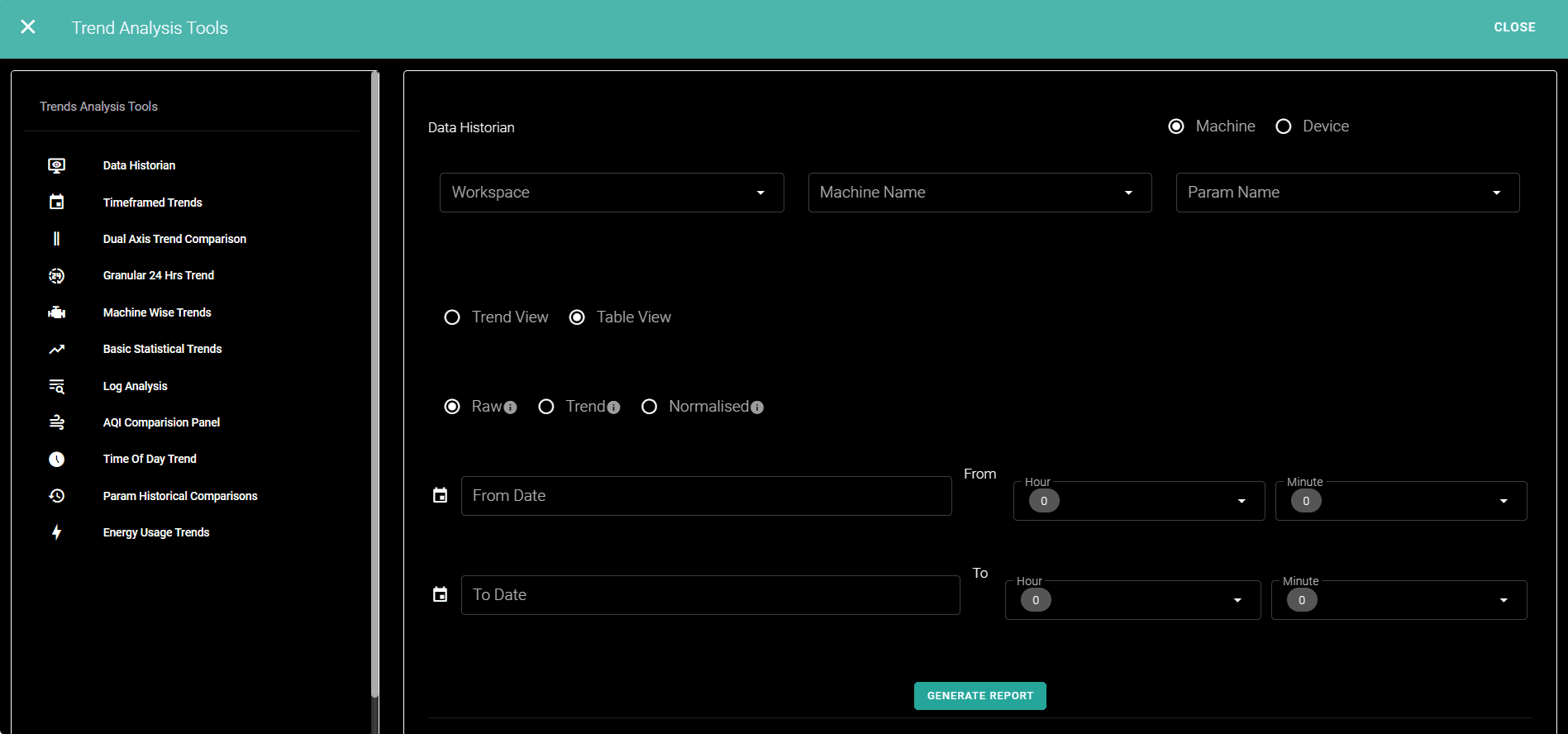

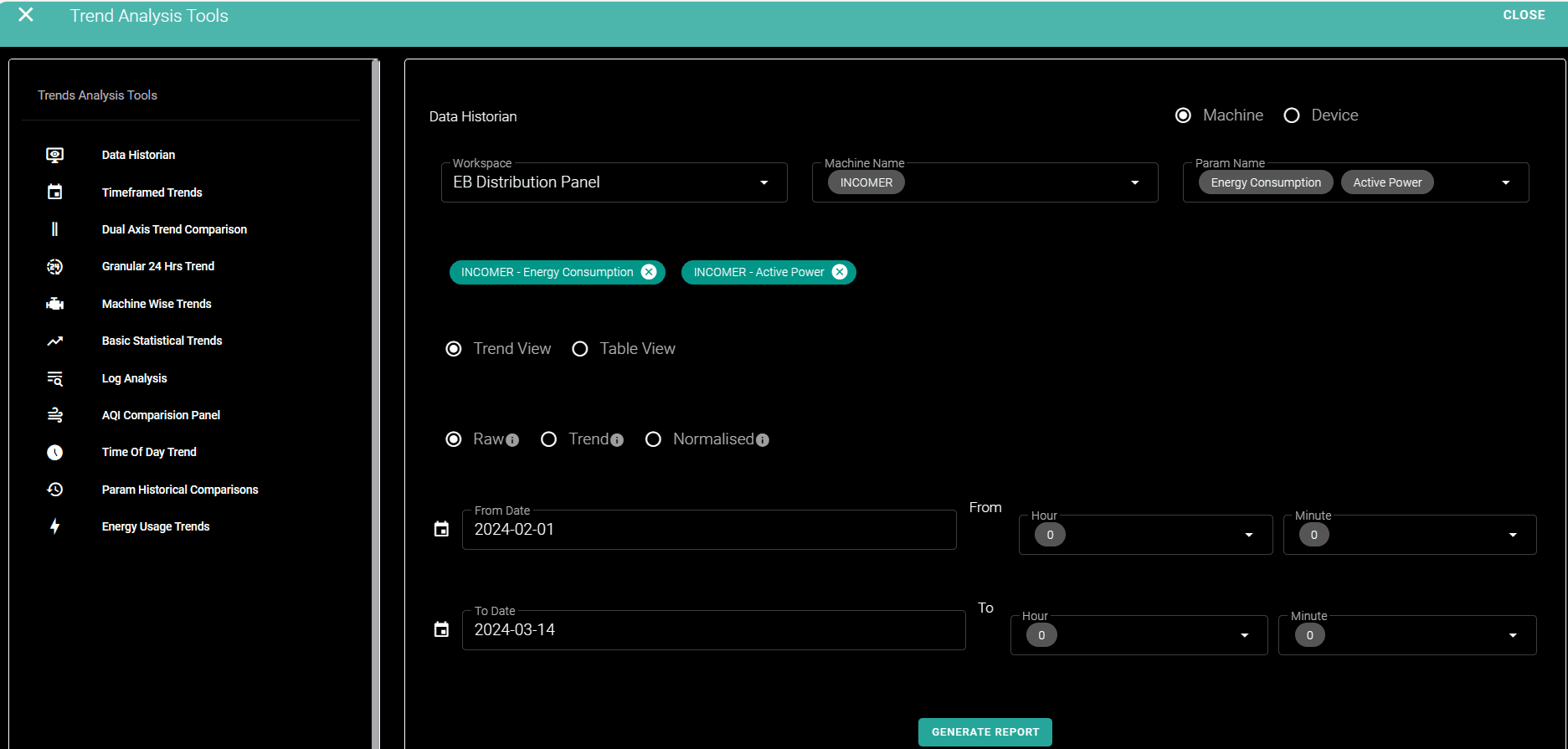

If you want to analyse the historic data Choose the “Data Historian” option from the left side menu. You will get a from like given below,

In the above given form you need to fill all the required details for Machine or Device. You can choose the form accordingly

There is an option for select parameters based on the “Machine” or “Device” form, Fill the required fields such as,

  • Choose the Workspace from the dropdown
  • Then from the dropdown Choose the Machine you want to analyse the data
  • Then choose the parameters you need to compare and see the results, you can select multiple parameters too.
  • Table View
  • Trend View
  • Raw
  • Normalised
  • Trend
  • Finally choose the From Date, Time, Minuetes and To Data, Time and Minutes
  • GENERATE REPORT

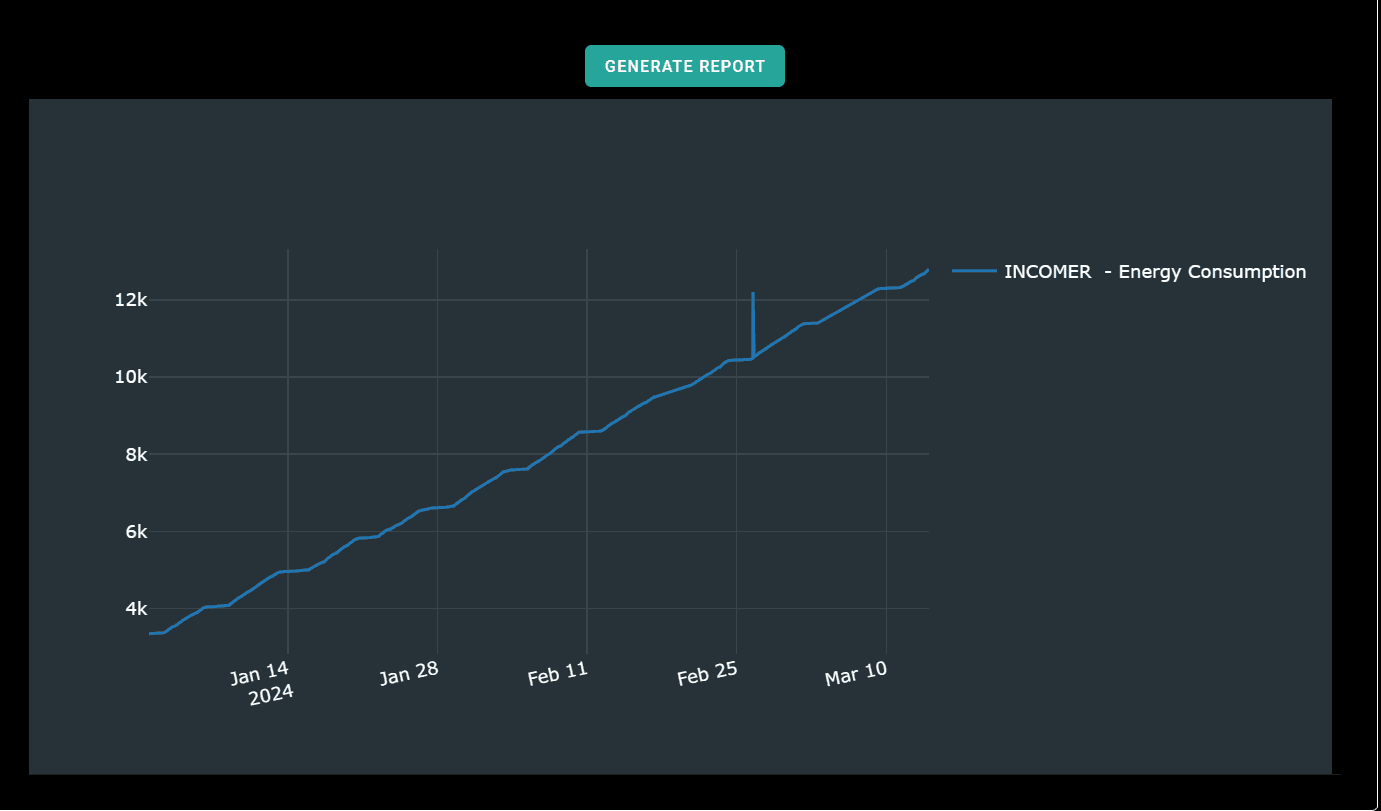

DataHistorian.png Filled_Form.png TrendView.png TableView.png

Timeframed Trends is a feature to analyse the data between Custom Time Range and also timeframe like Daily, Weekly, Monthly.

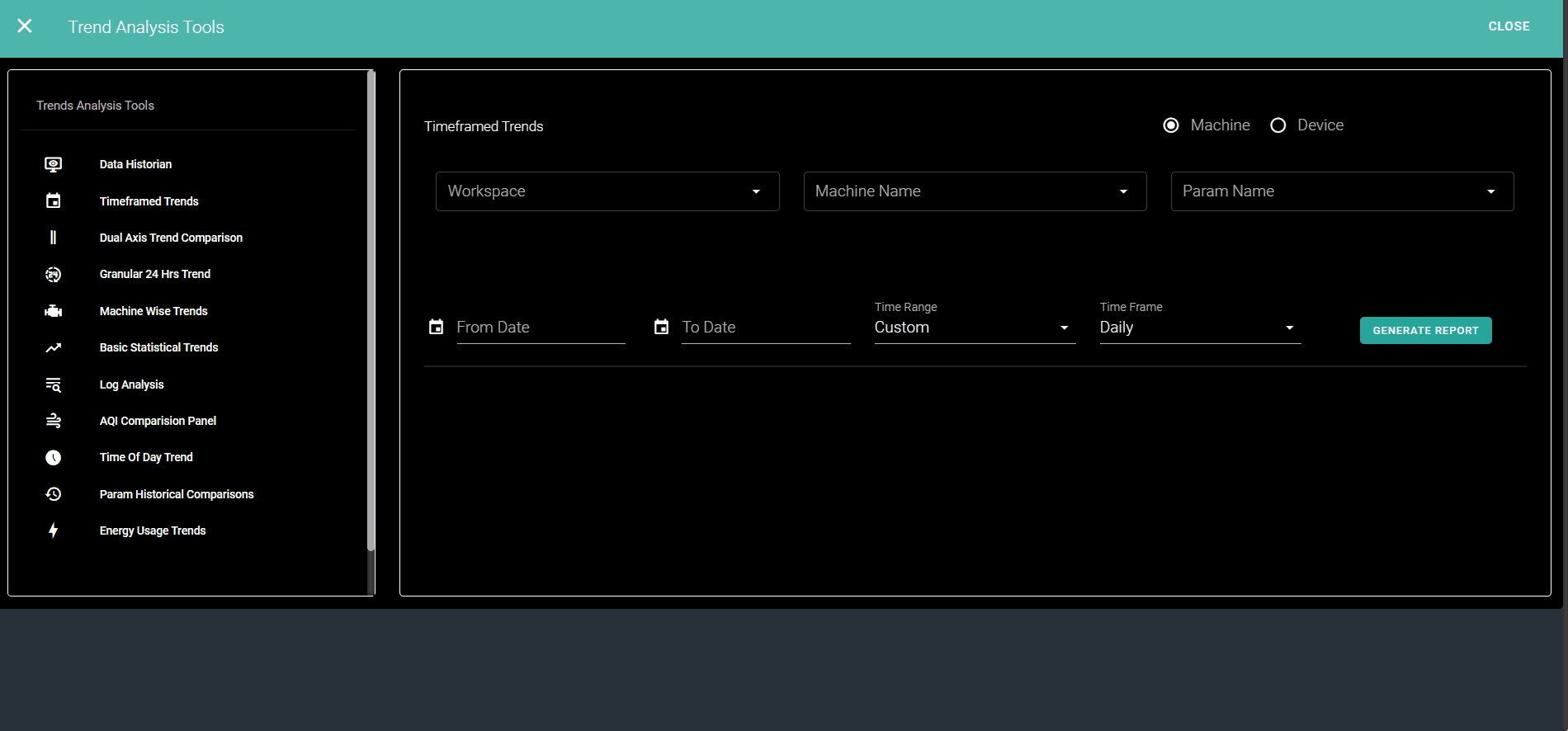

After cliked the option you will get the form like below given,

Select and fill the requried fields in the form such as

  • Choose the Workspace from the dropdown,
  • Then from the dropdown Choose the Machine you want to analyse the data
  • Then choose the parameters you need to compare and see the results, you can select multiple parameters too.
  • Then select the (Custom Time Range) From Time & To Time or you can choose the past timerange like Last 24 hours, Last 48 hours, Last 7 days, Last 30 days, Last 90 days, Last 12 weeks, Last 6 months, or Last 12 months.
  • Then select Time Frame like Daily, Monthly, Weekly or Yearly for generating report based on the timeframe

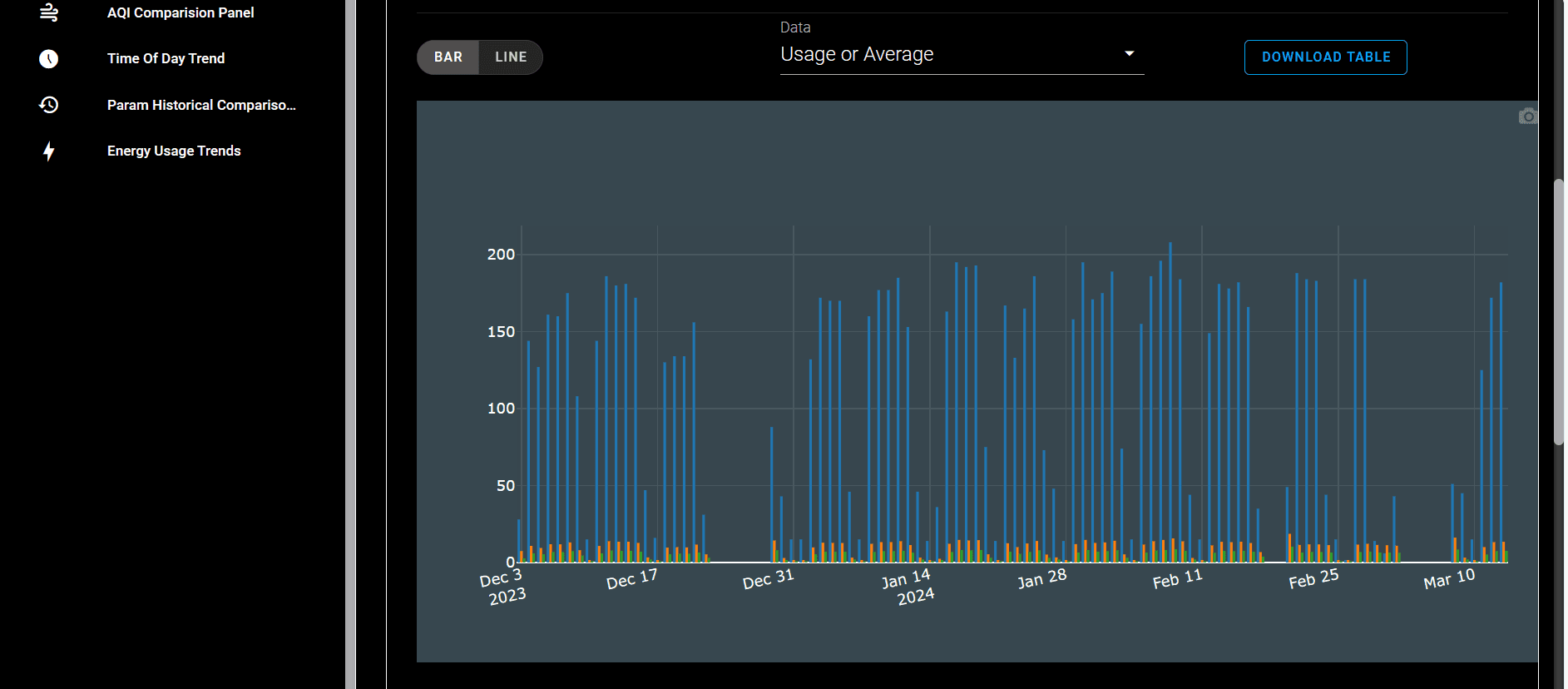

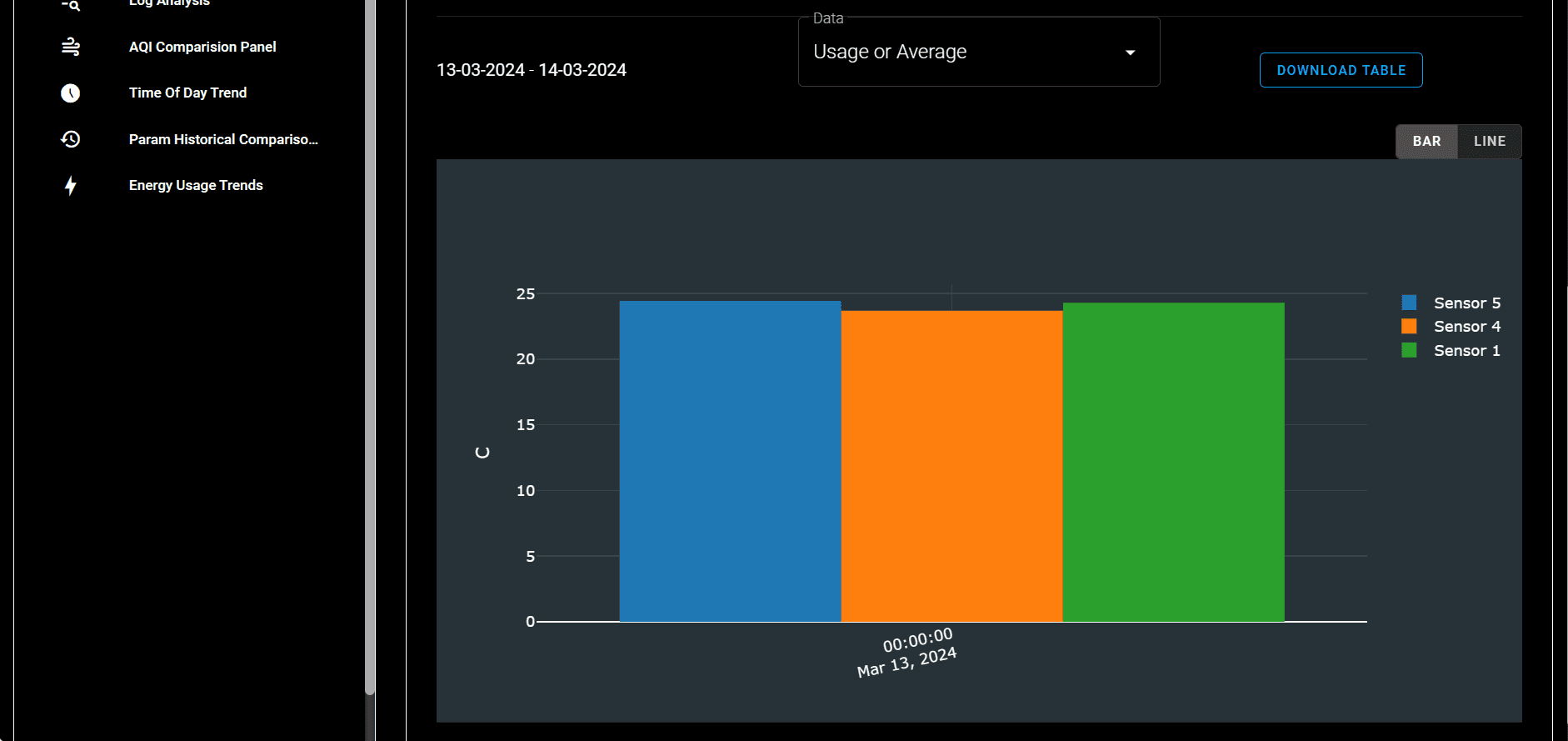

The table report will look like given below,

Both reports will contain download button and that will allow you to download after you clicked that button and The report will download as csv.

TimeFramedTrendForm.png timeframedfilledform.png timframedgraph.png timeframedtable.png

Dual Axis Trend Comparison

Dual Axis Trend Comparison is a feature to compare the data between two axis with different parameters.

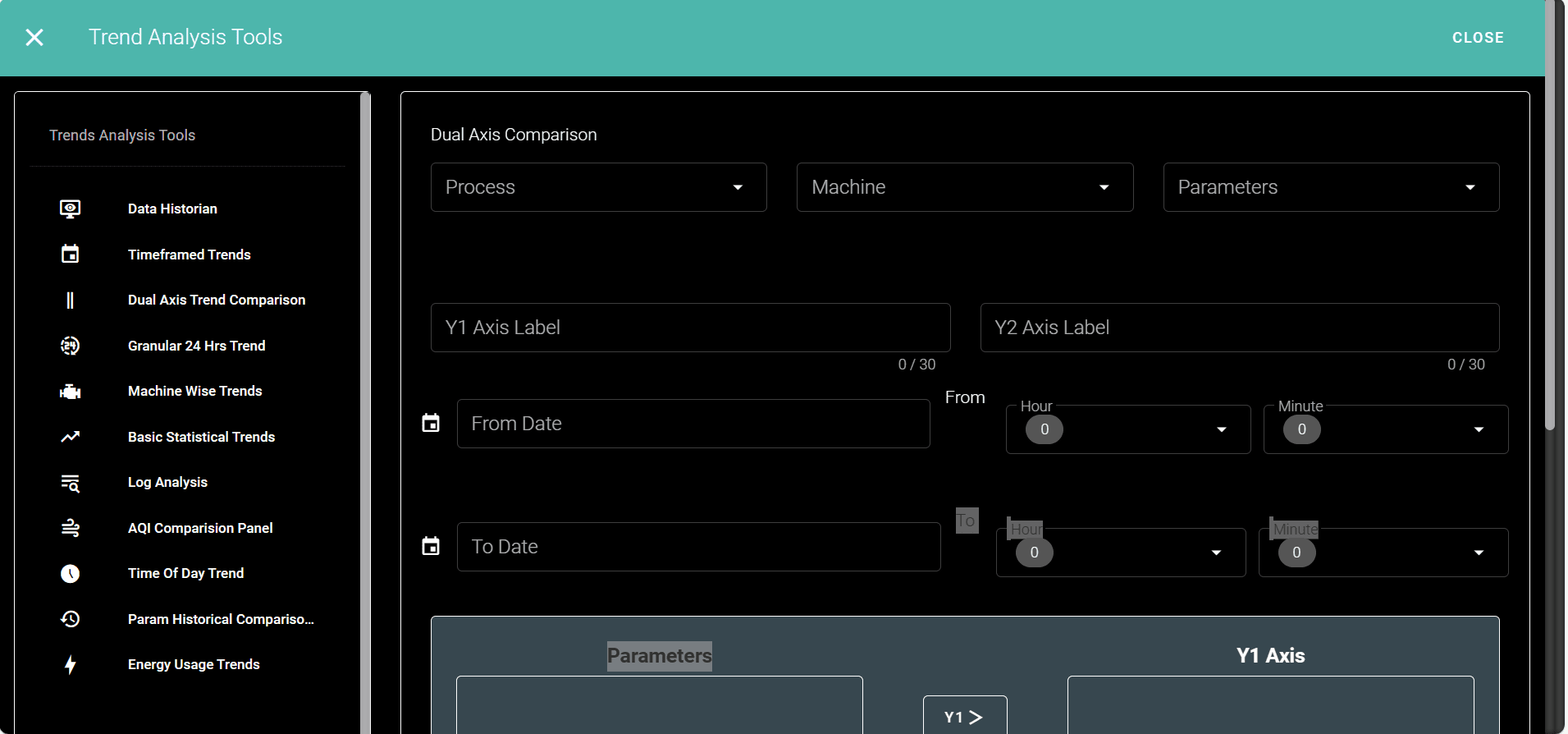

After cliked the option you will get the form like below given,

Select and fill the requried fields in the form such as

  • Choose the Process from the dropdown,
  • Then from the dropdown Choose the Machine you want to analyse the data
  • Then choose the parameters you need to compare and see the results, you can select multiple parameters too.
  • Then Mention the Labels for axis-Y1 and axis-Y2 that will show in the graph axis.
  • Then select Time range like From Time to To Time

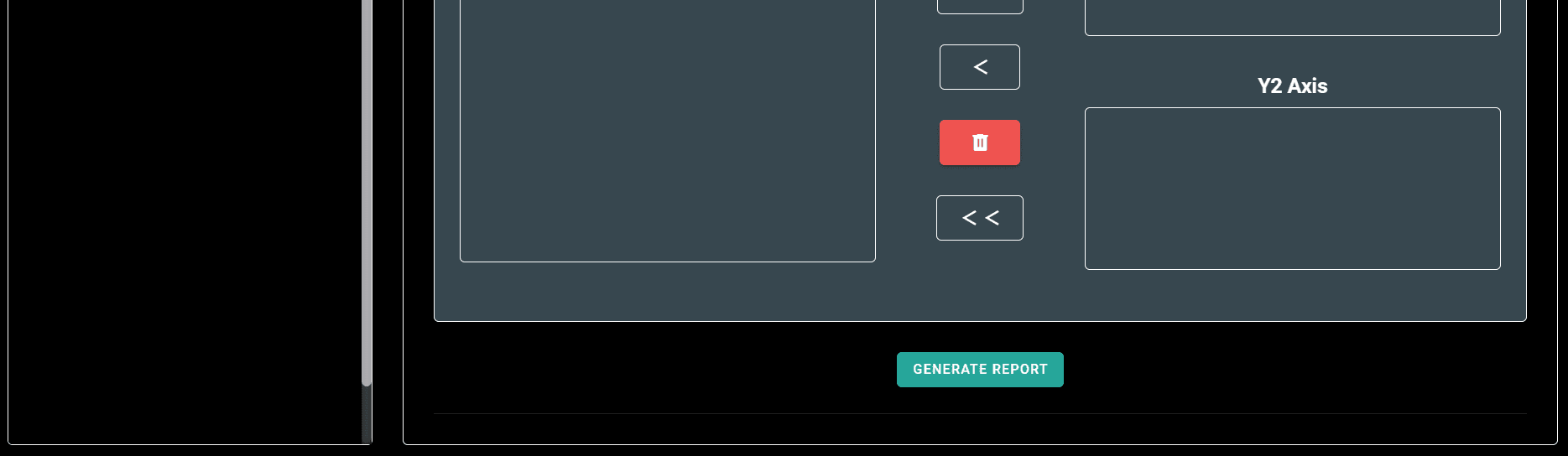

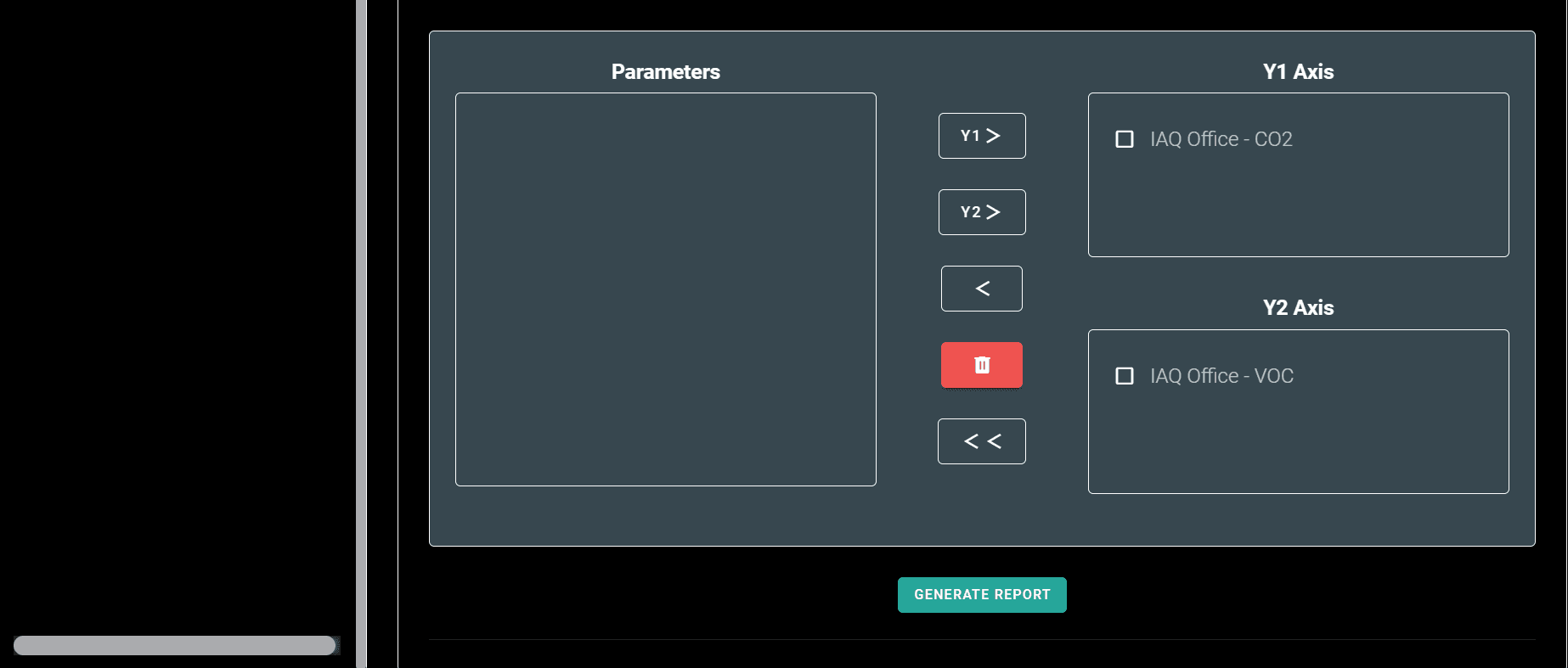

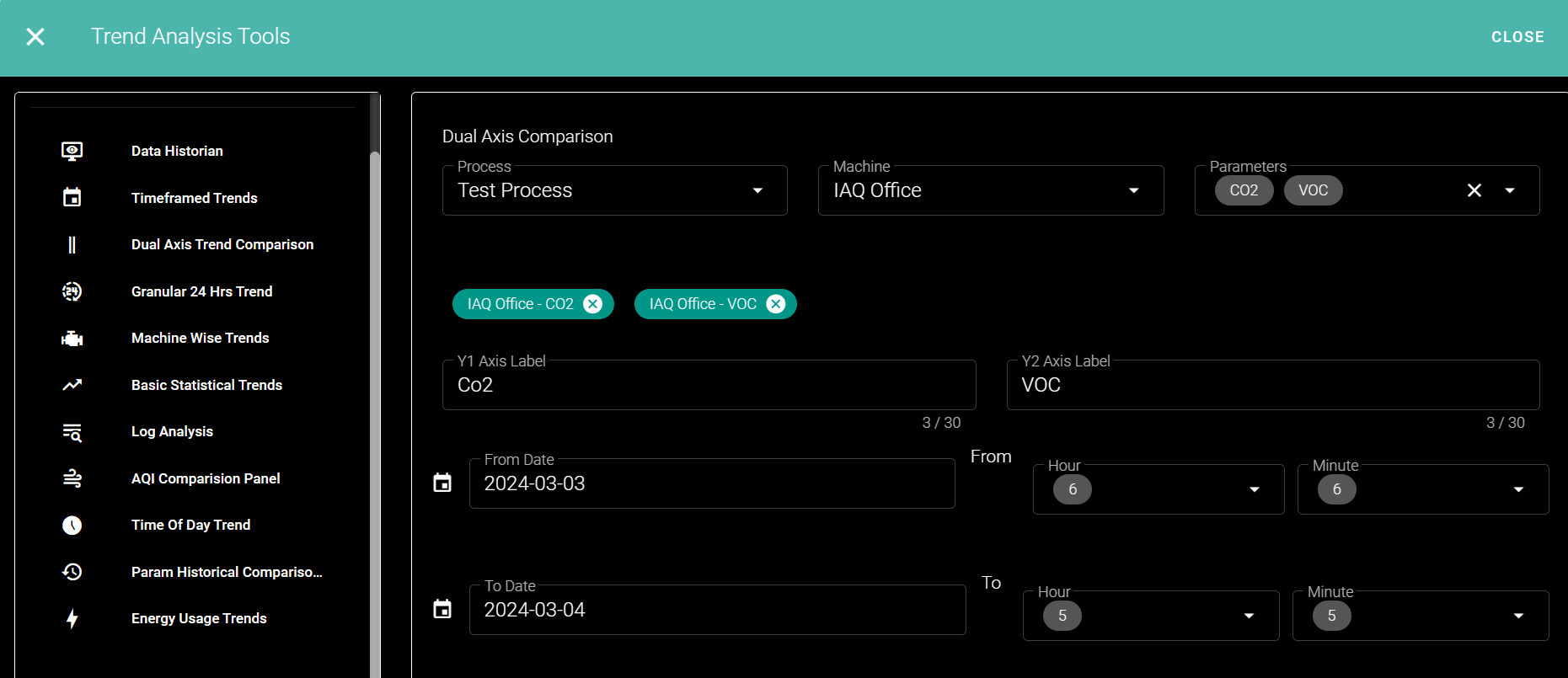

  • Then there will be a card to move parameters for respective axis, you can select any parameter and then move it to the respective Axis box like Y1-Axis or Y2 Axis

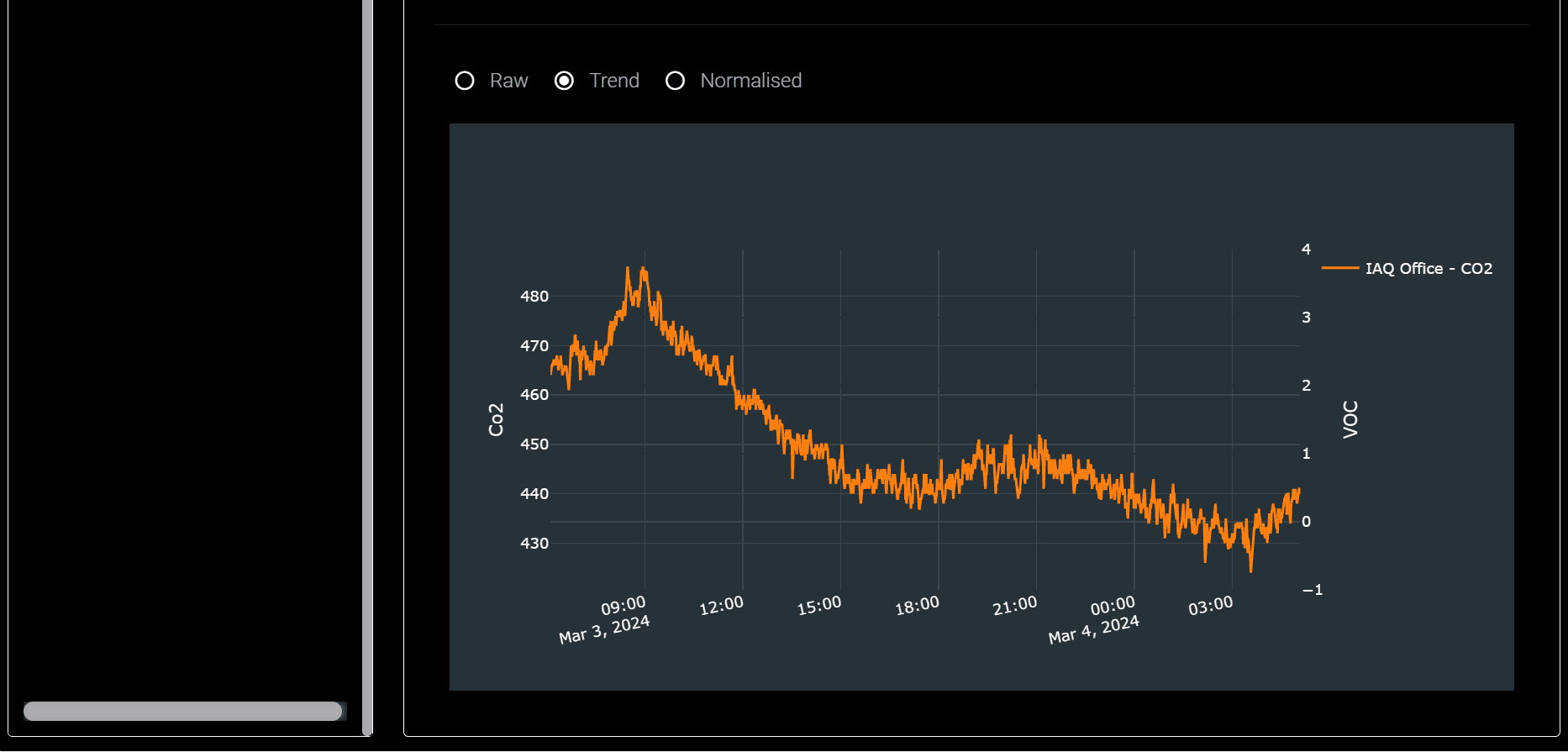

In this report also you can generate the report for “Raw”,“Normalised” and “Trend” data.

DualAxis.png DualAxis1.png filledForm1.png filledForm2.png 15dualaxisreport.png

Granular 24Hrs Trend

Granular 24Hrs Trend is a feature to analyse the data in a granular level within 24 hours timeframe for any set of parameters.

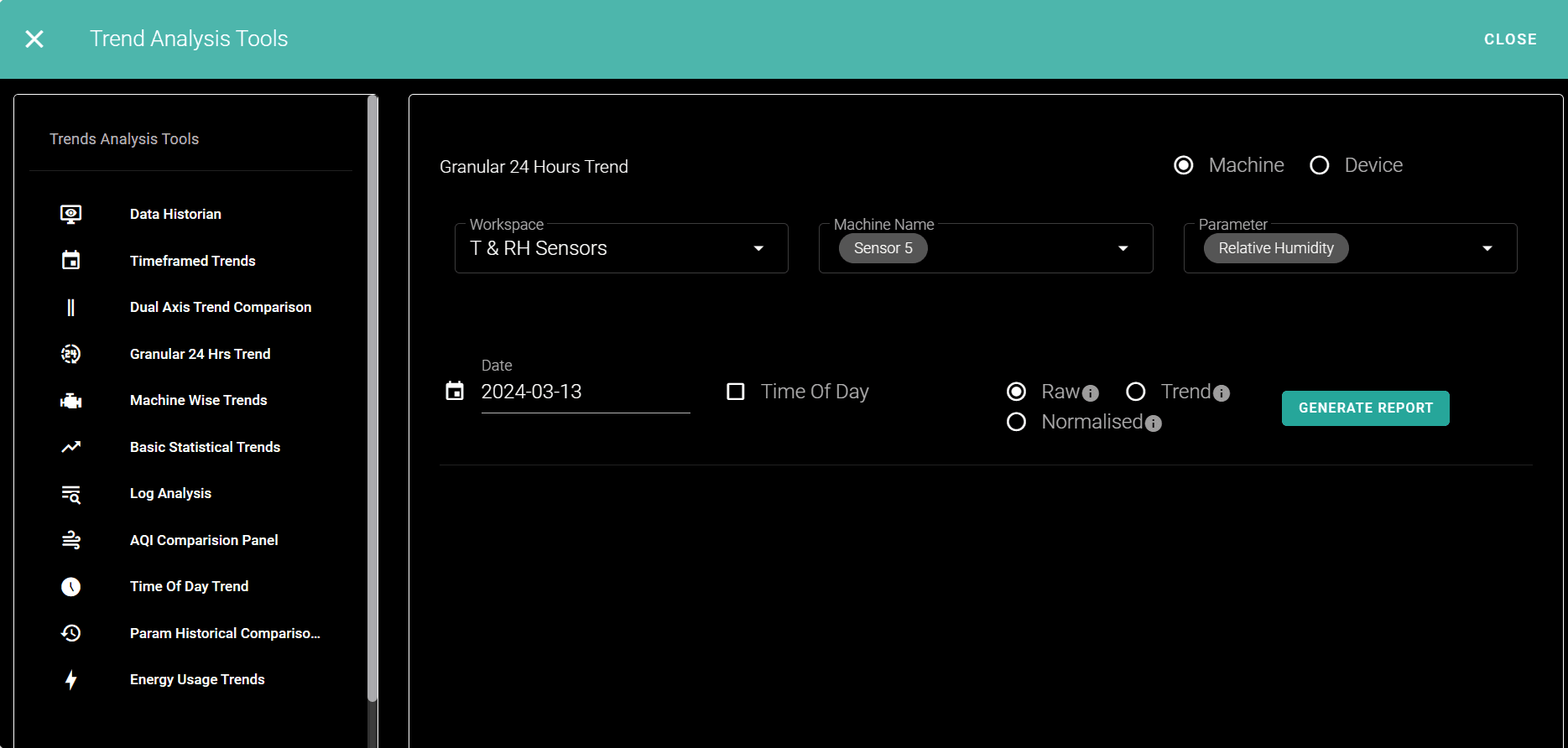

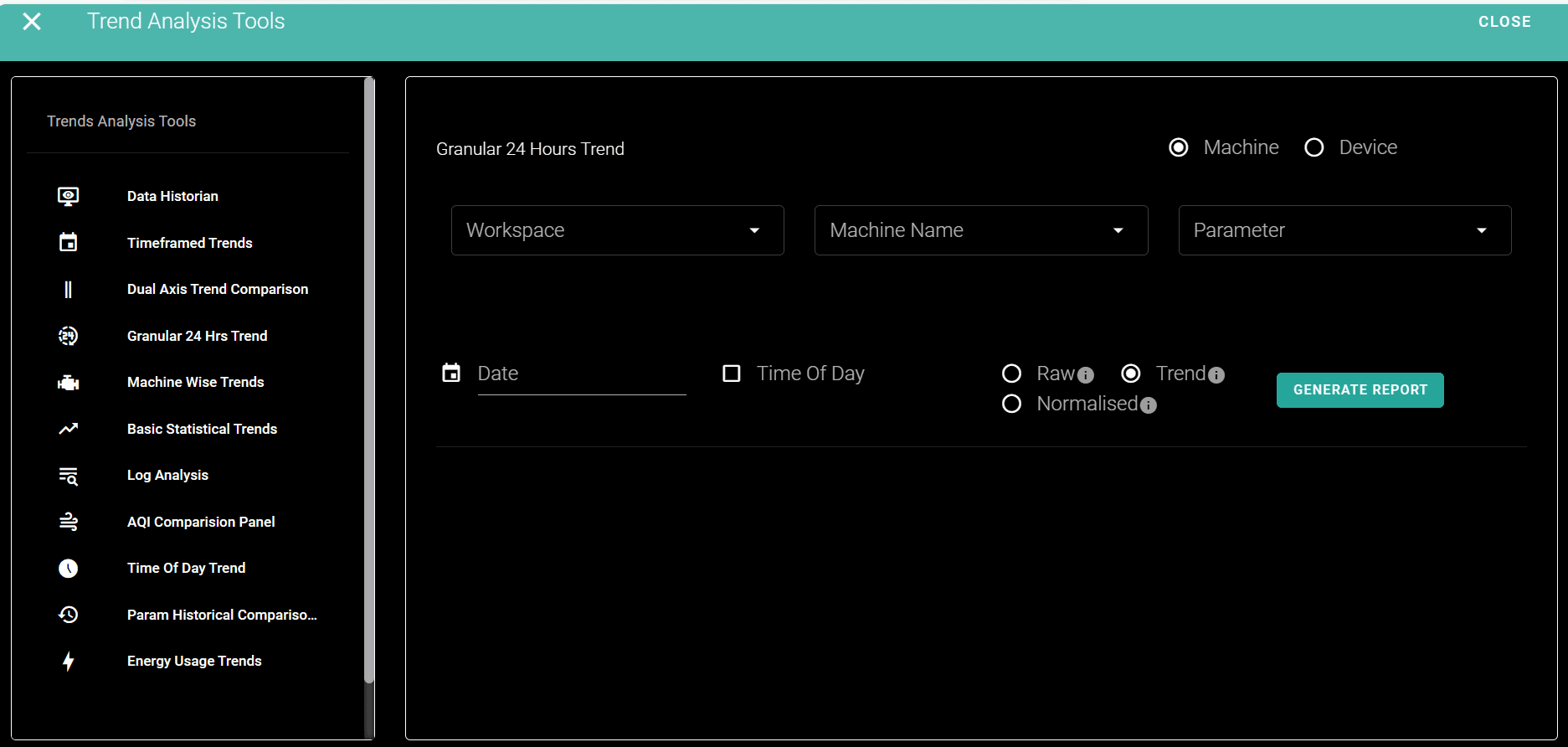

After cliked the option you will get the form like below given,

Select and fill the requried fields in the form such as

  • Choose the Workspace from the dropdown,
  • Then from the dropdown Choose the Machine you want to analyse the data
  • Then choose the parameters you need to compare and see the results, you can select multiple parameters too.
  • Then select the particular date and time range in that date like From time and To time.

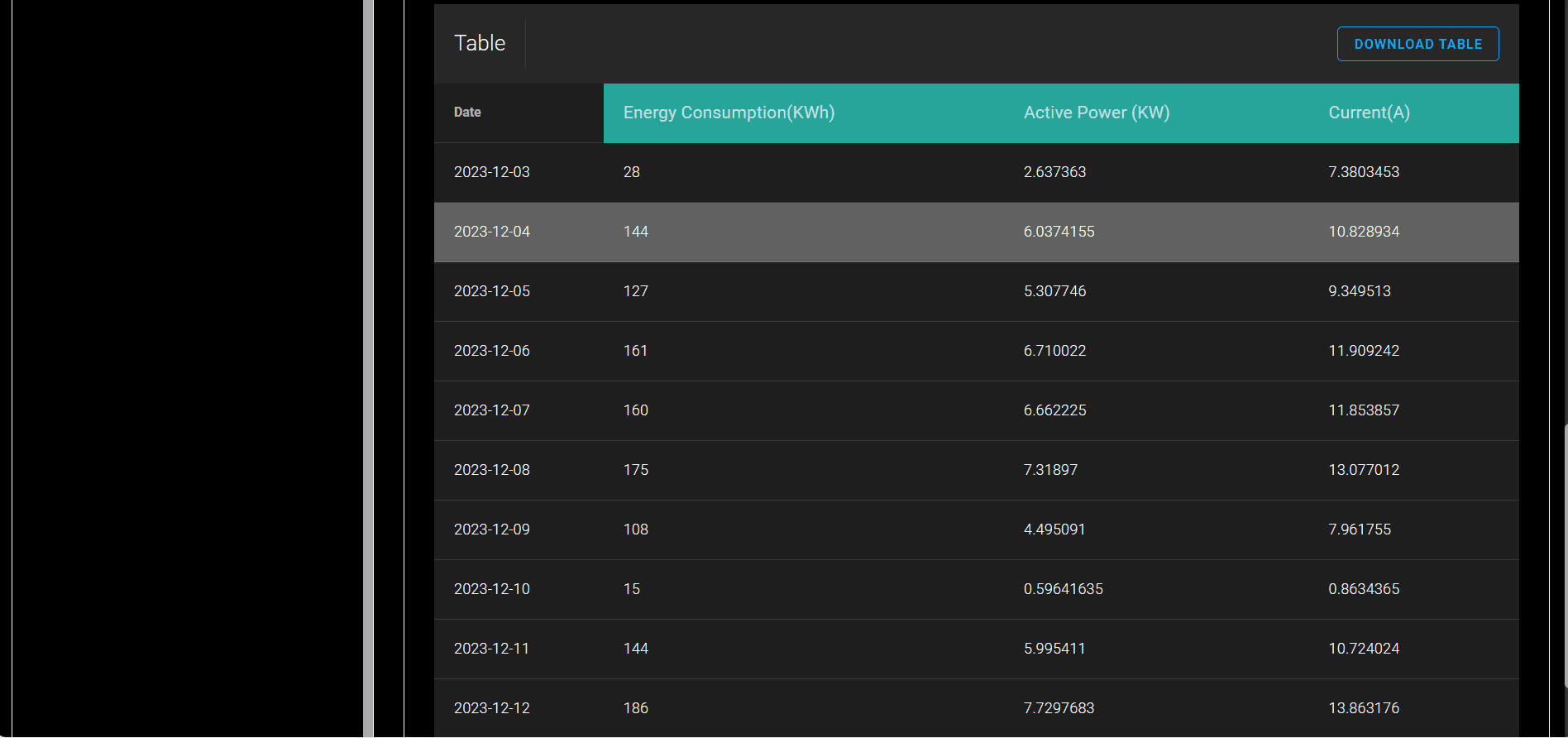

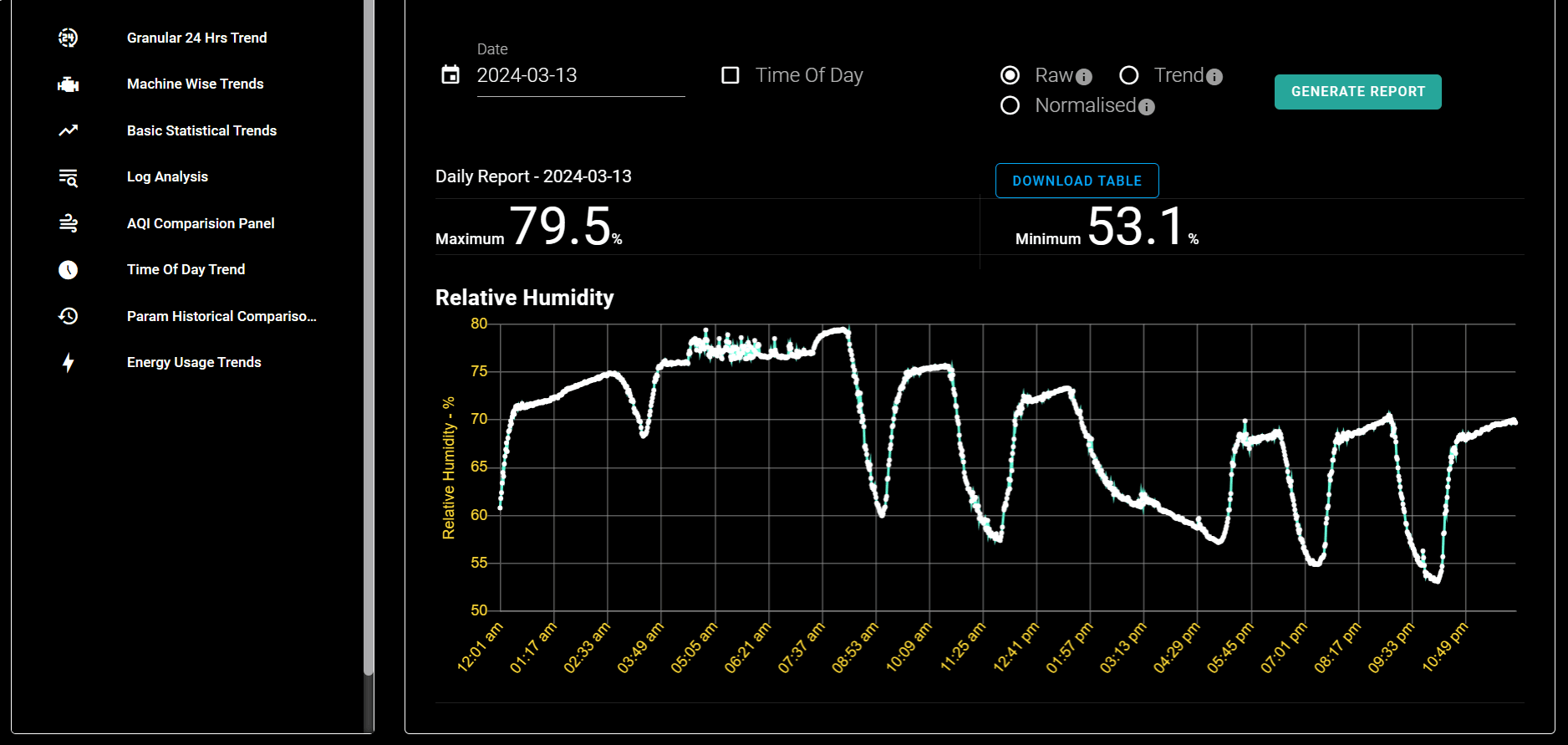

The table report will look like given below,

report will contain download button and that will allow you to download after you clicked that button and The report will download as csv.

Granular.png granularfilled.png granularreport.png

Machine Wise Trends is a feature to compare parameters across multiple machines over a selected timeframe.

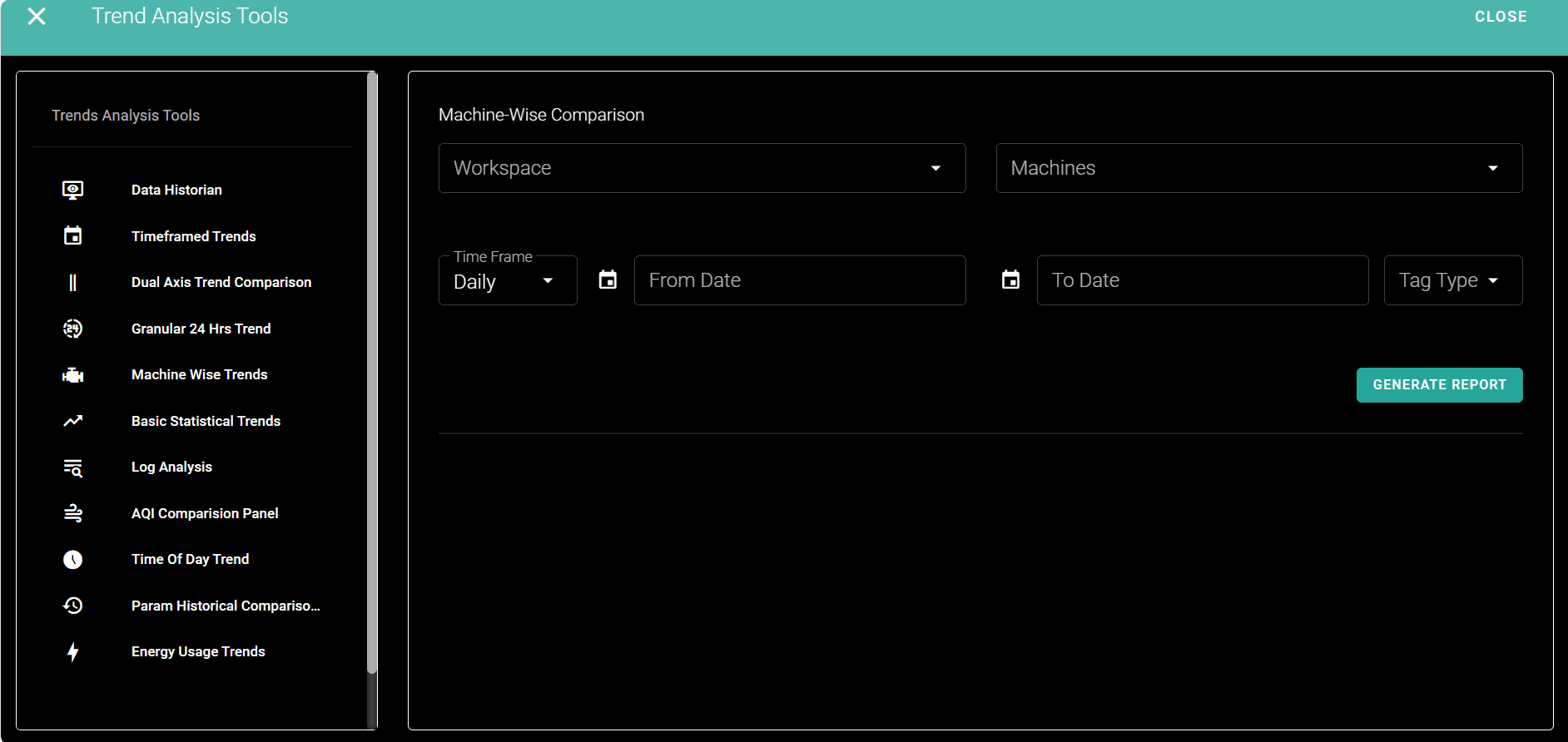

After cliked the option you will get the form like below given,

Select and fill the requried fields in the form such as

  • Choose the Workspace from the dropdown,
  • Then from the dropdown Choose the Machine you want to analyse the data
  • Then choose the timeframe from dropdown.
  • Then select the From and TO date
  • Then select the tag type for the comparison.

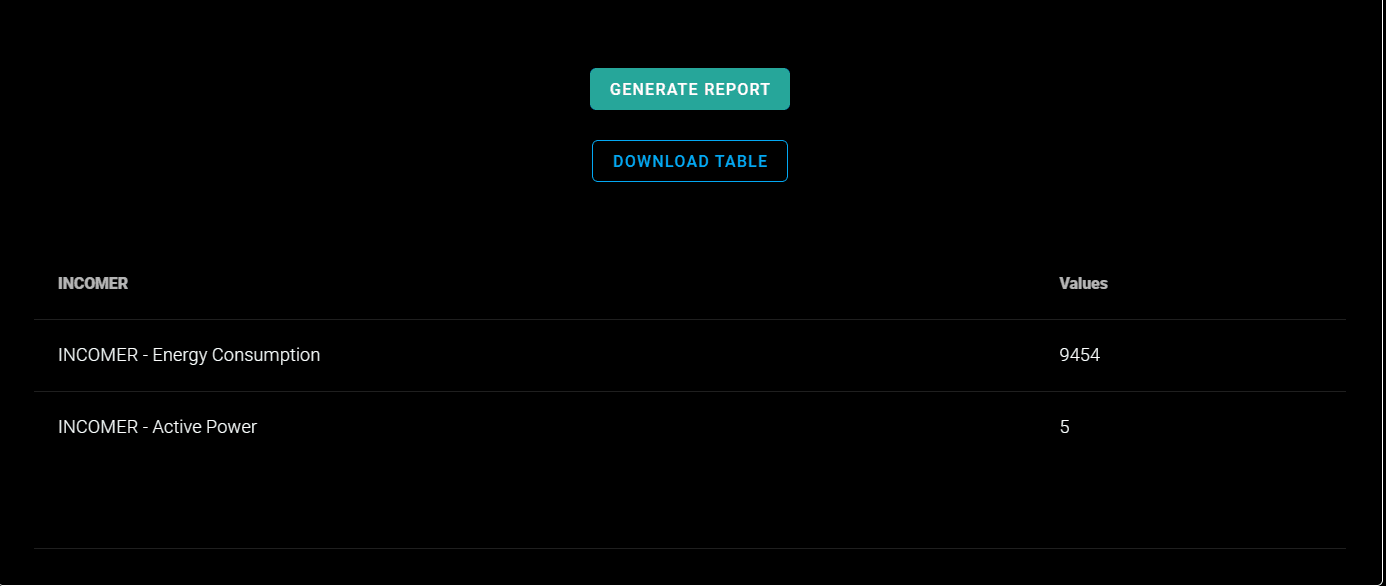

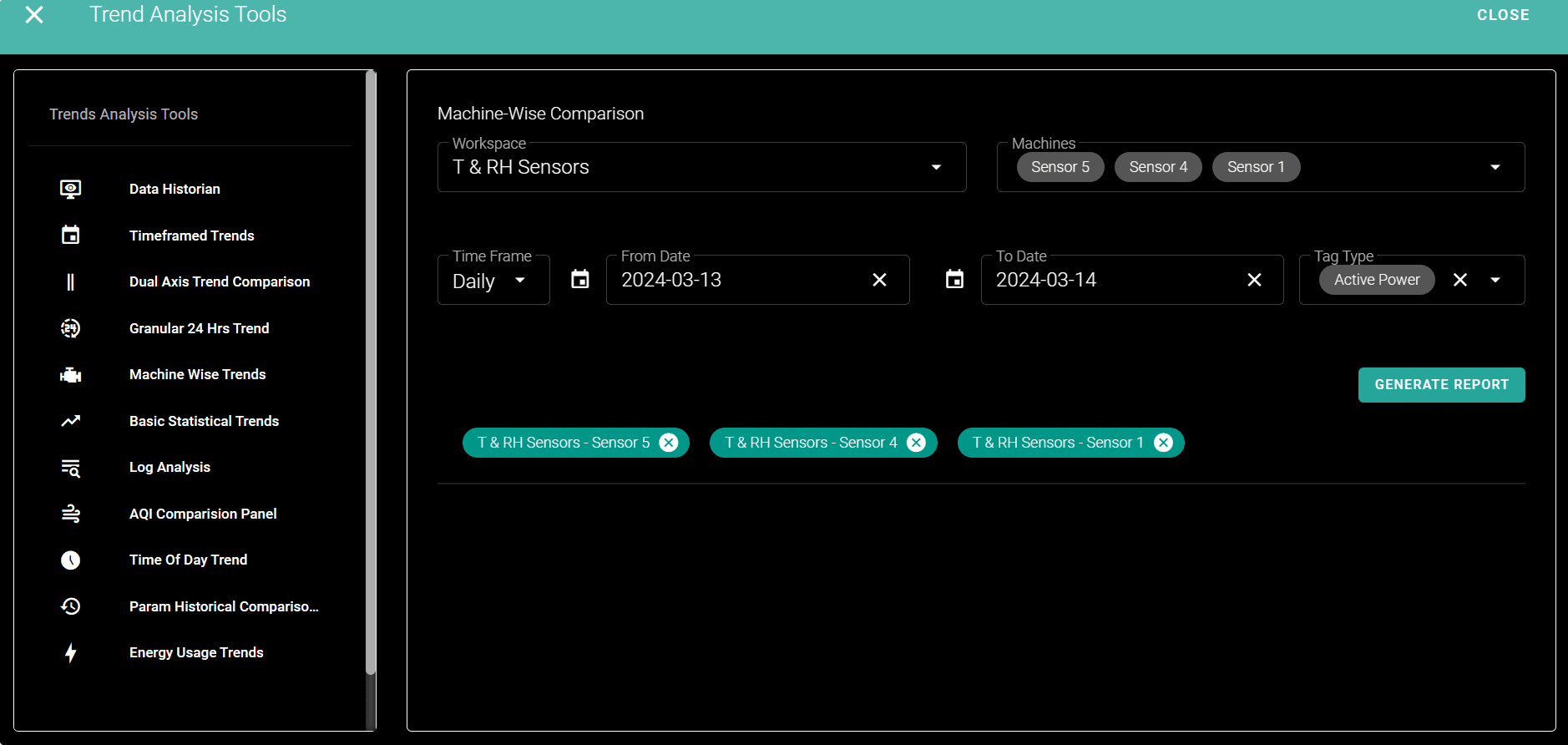

report will contain download button and that will allow you to download after you clicked that button and The report will download as csv.

Machinewise.png 20machinewisefilled.png Machinewisereport.png

Basic Statistical Trends is a feature to analyse statistical metrics like mean, median, min, max over a set of parameters in a given timeframe.

After cliked the option you will get the form like below given,

Select and fill the requried fields in the form such as

  • Choose the Workspace from the dropdown,
  • Then from the dropdown Choose the Machine you want to analyse the data
  • Then choose the timeframe from dropdown.
  • Then select the From and To date
  • Then select the tag type for the comparison.

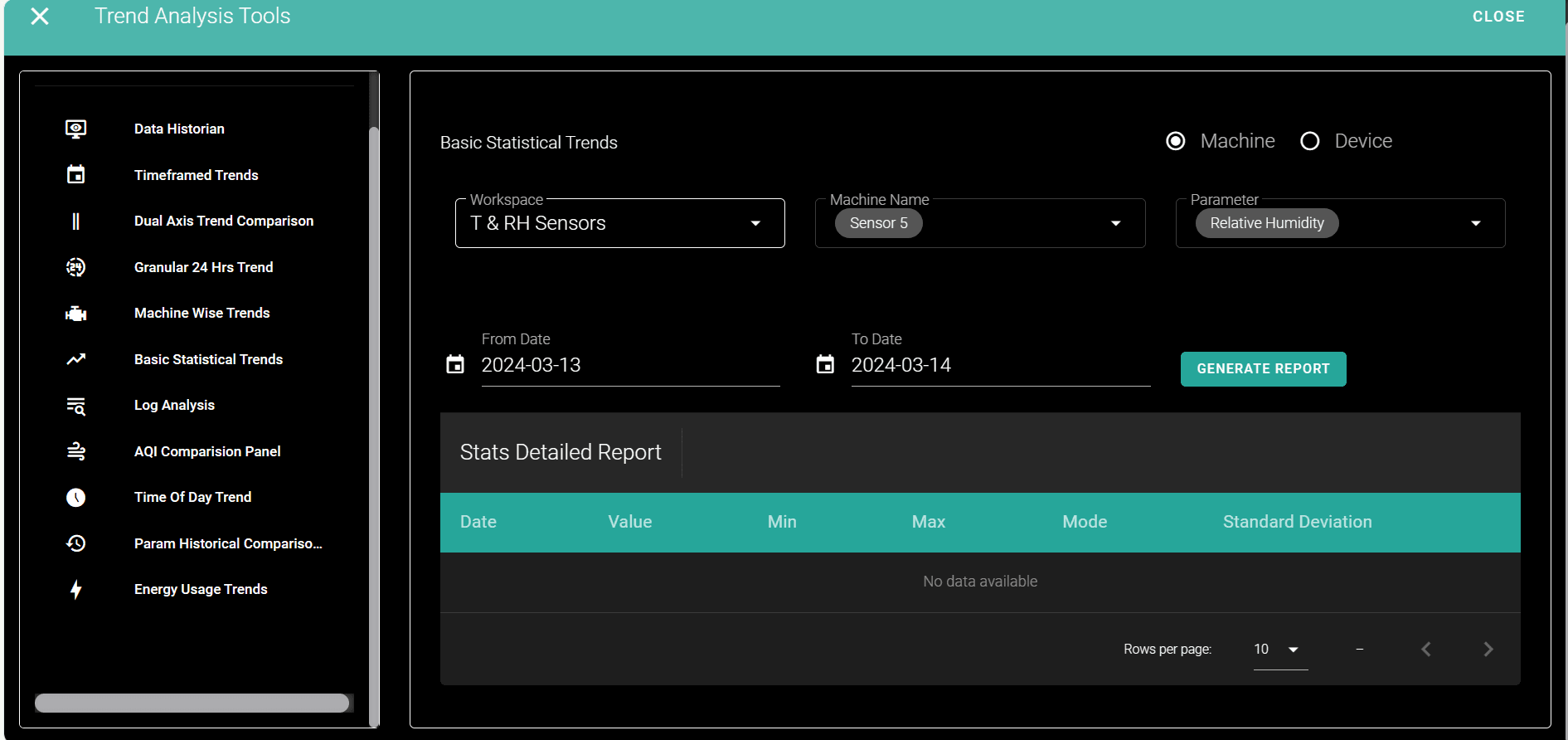

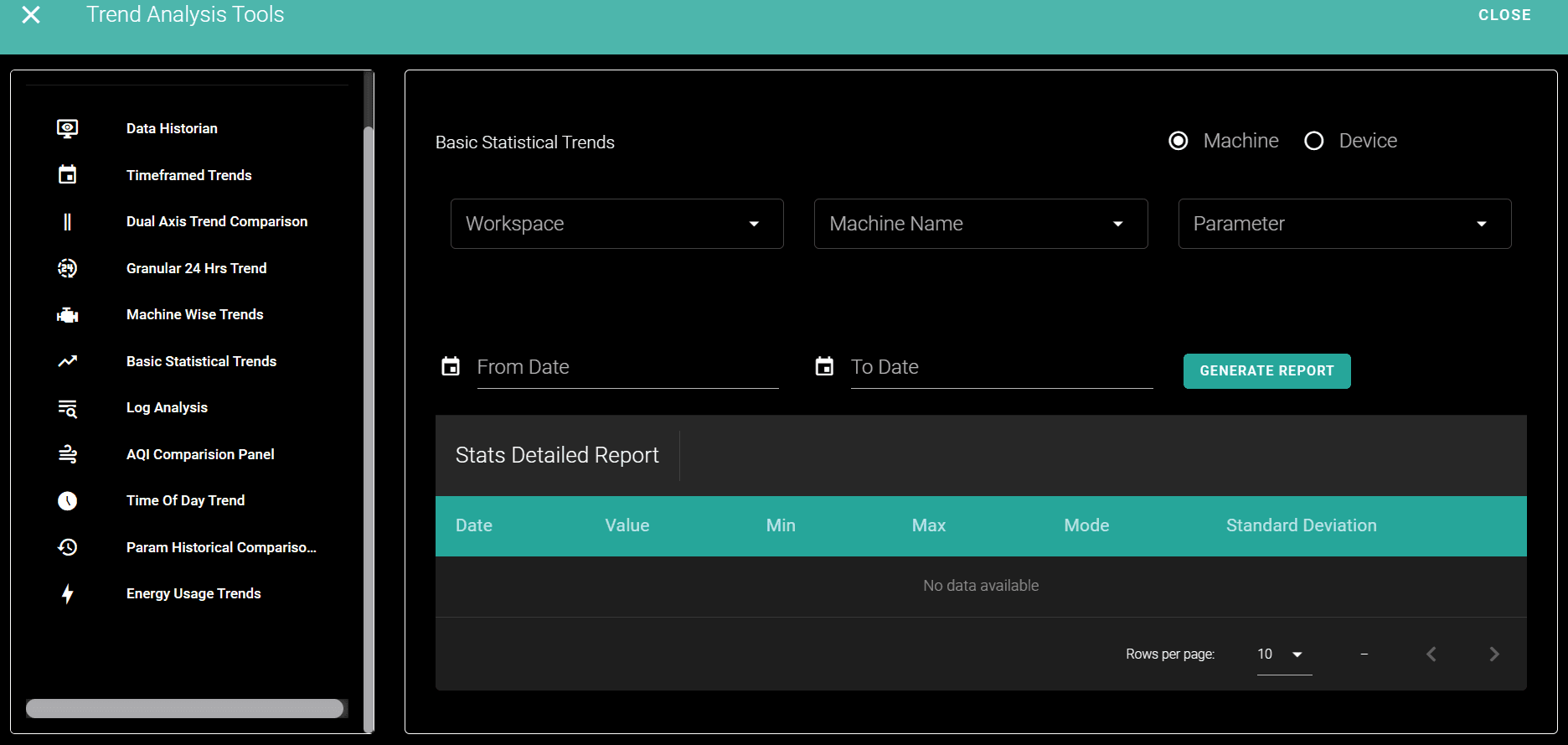

After filled the form field it will look like the given below image

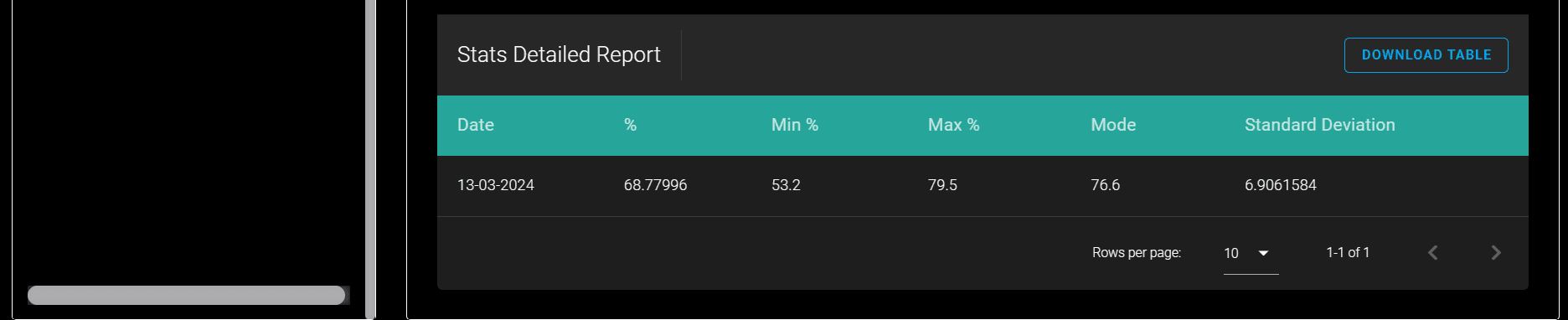

Both reports will contain downloadPDF button and Download button and that will allow you to download after you clicked that button and The report will download as csv and PDF.

boasicstatsform.png filledbasicstatsform.png BasicStatsreport.png BasicStatsreport1.png

Log Analysis

Log Analysis is a feature to browse and filter operation & system logs for the selected devices.

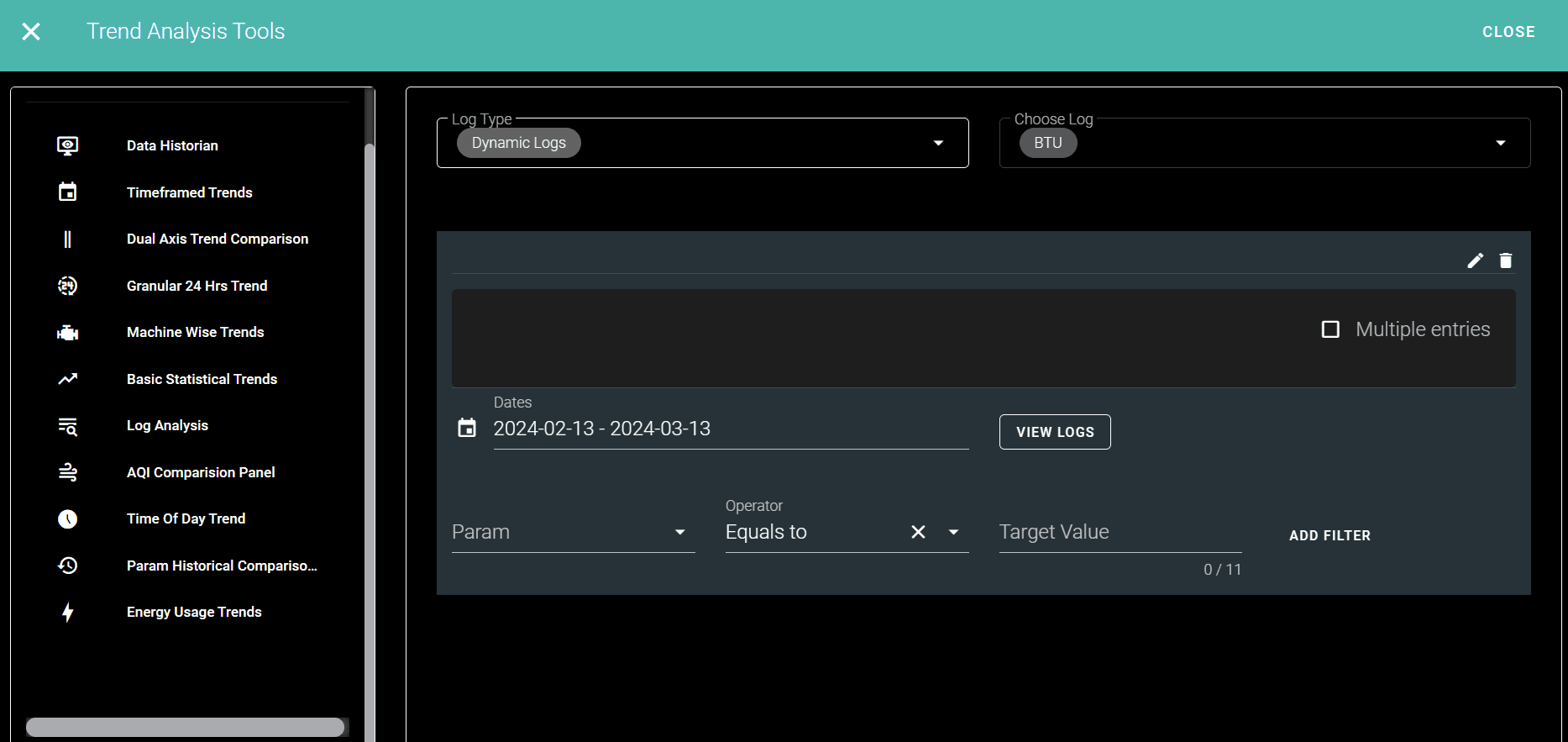

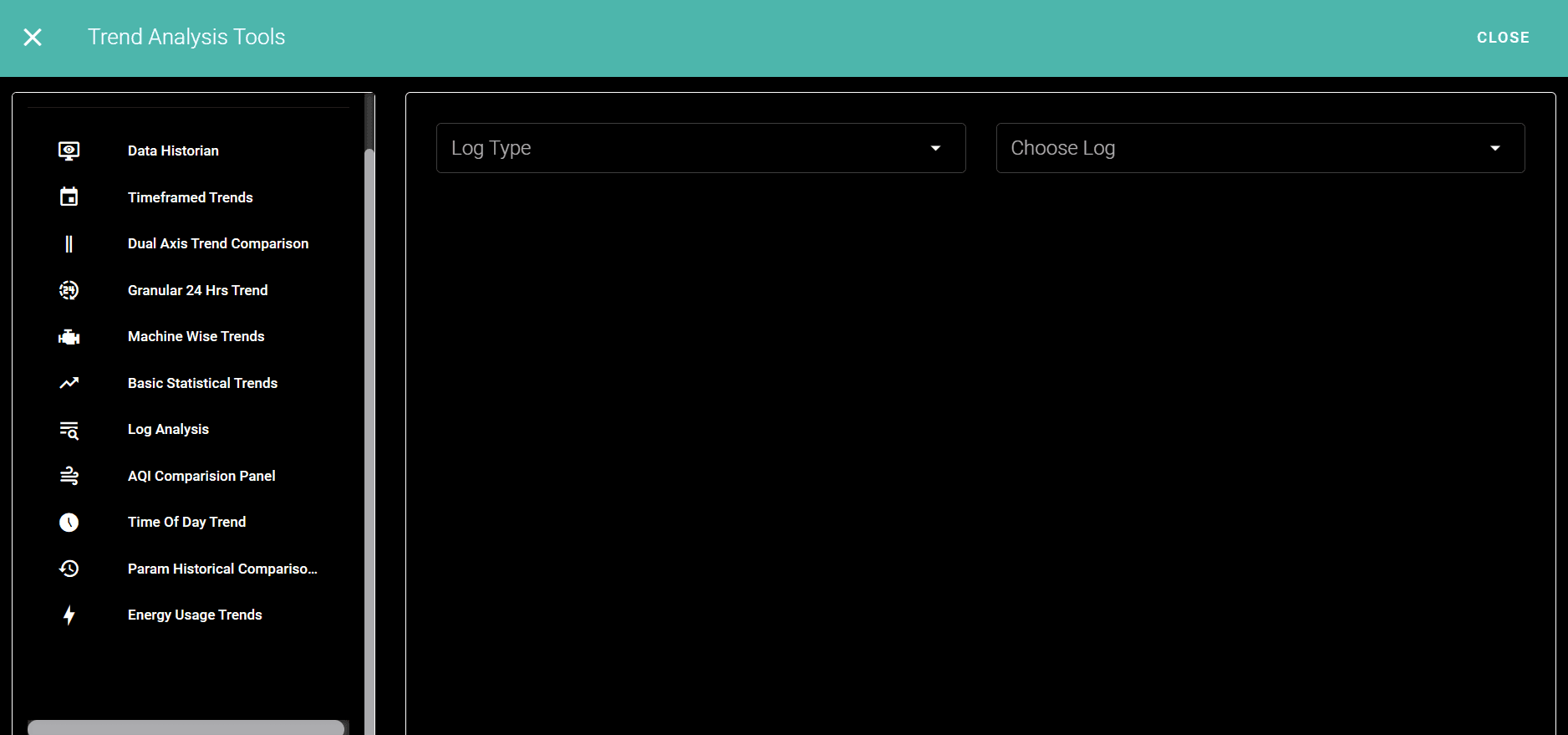

Then Choose the From and To date range hit view logs button you will get log data details for that data range, like given below.

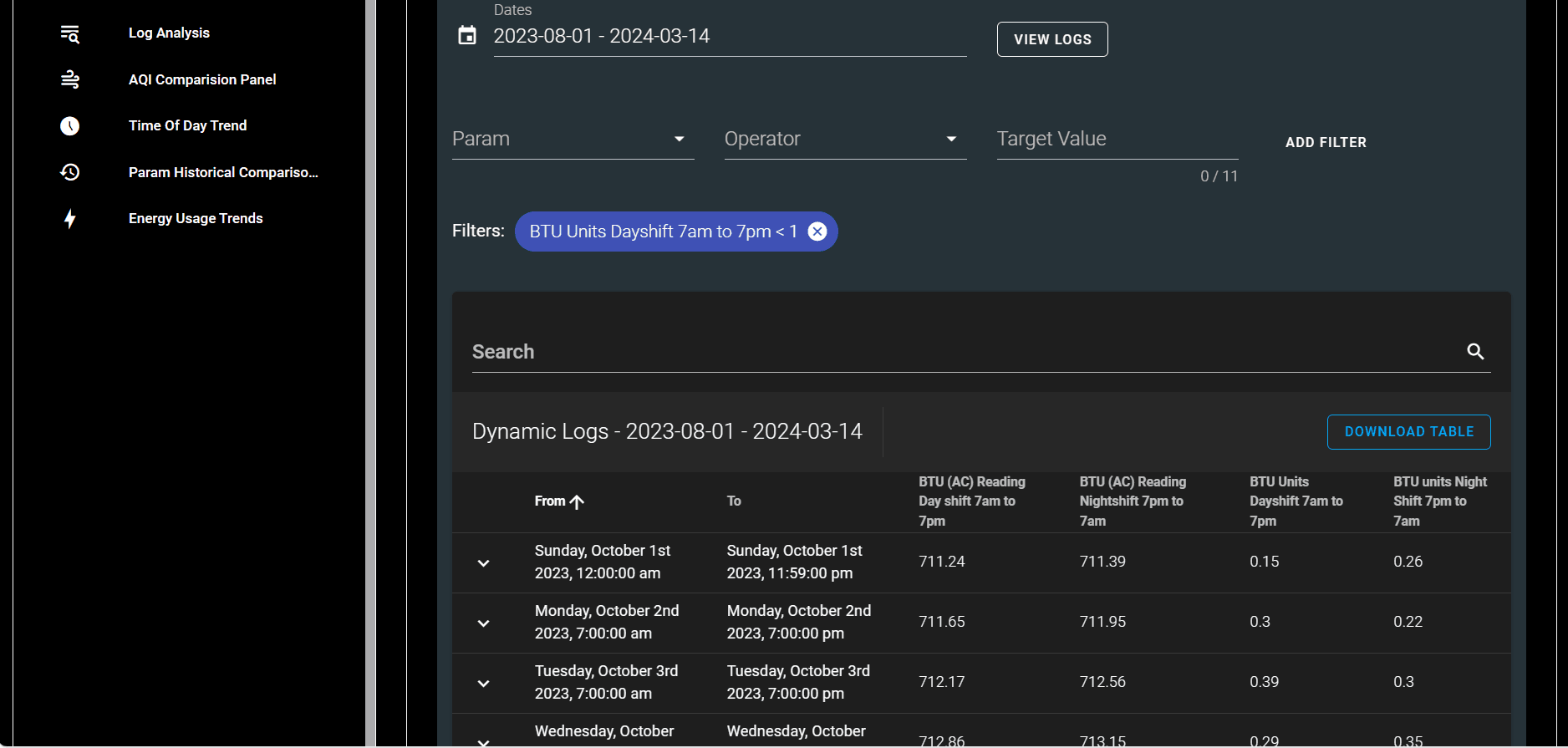

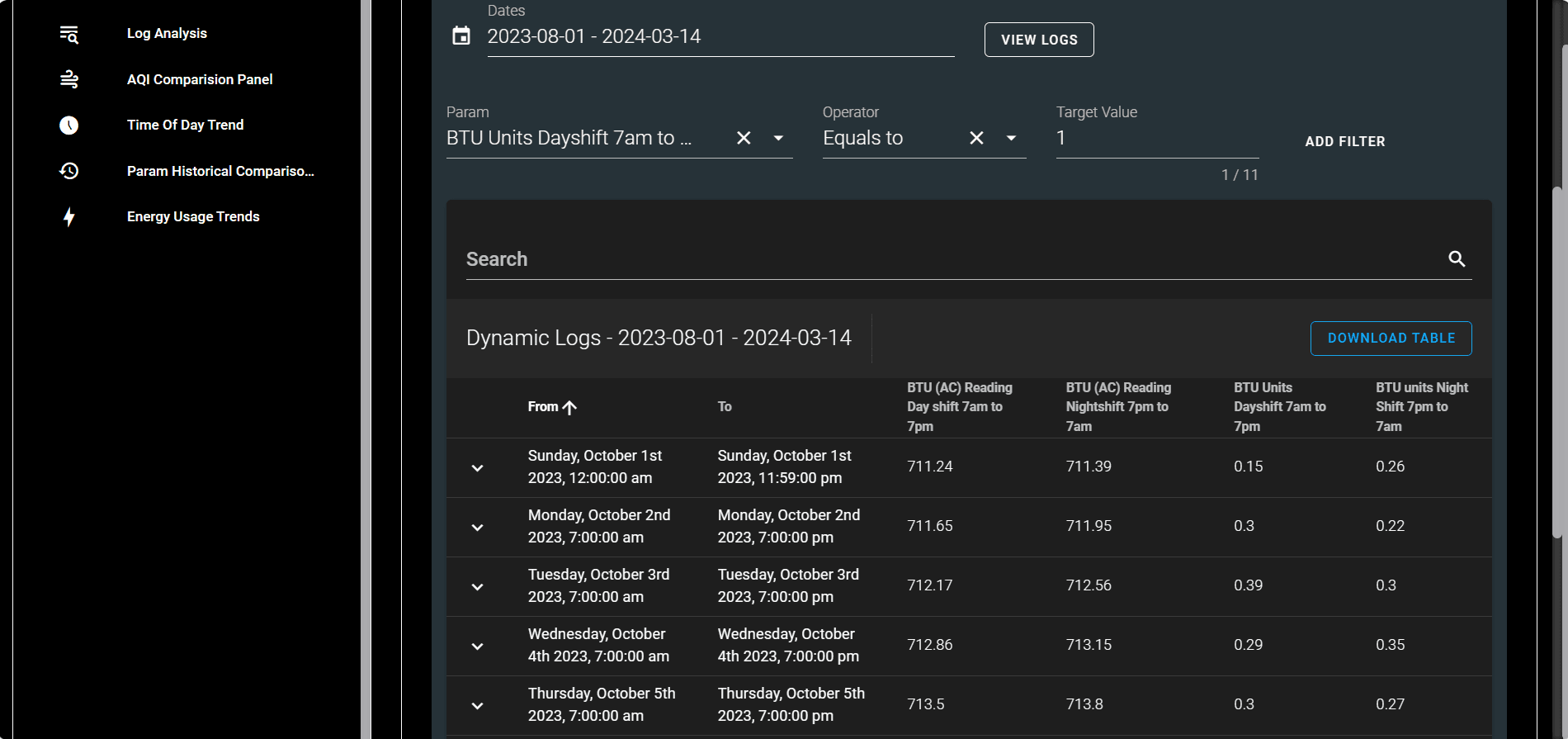

By using this form you can filter the data based on the operator or parameter you will get the filtered log details results like given below

Log Analysis Form.png Log filtering form.png Log list.png Filtered log list.png

AQI Comparision Panel

AQI Comparision Panel is a feature to compare Air Quality Index trends between different devices or areas.

  • Choose the area from the dropdown,
  • Then choose the AQI device from the dropdown
  • Then select the From and To date range

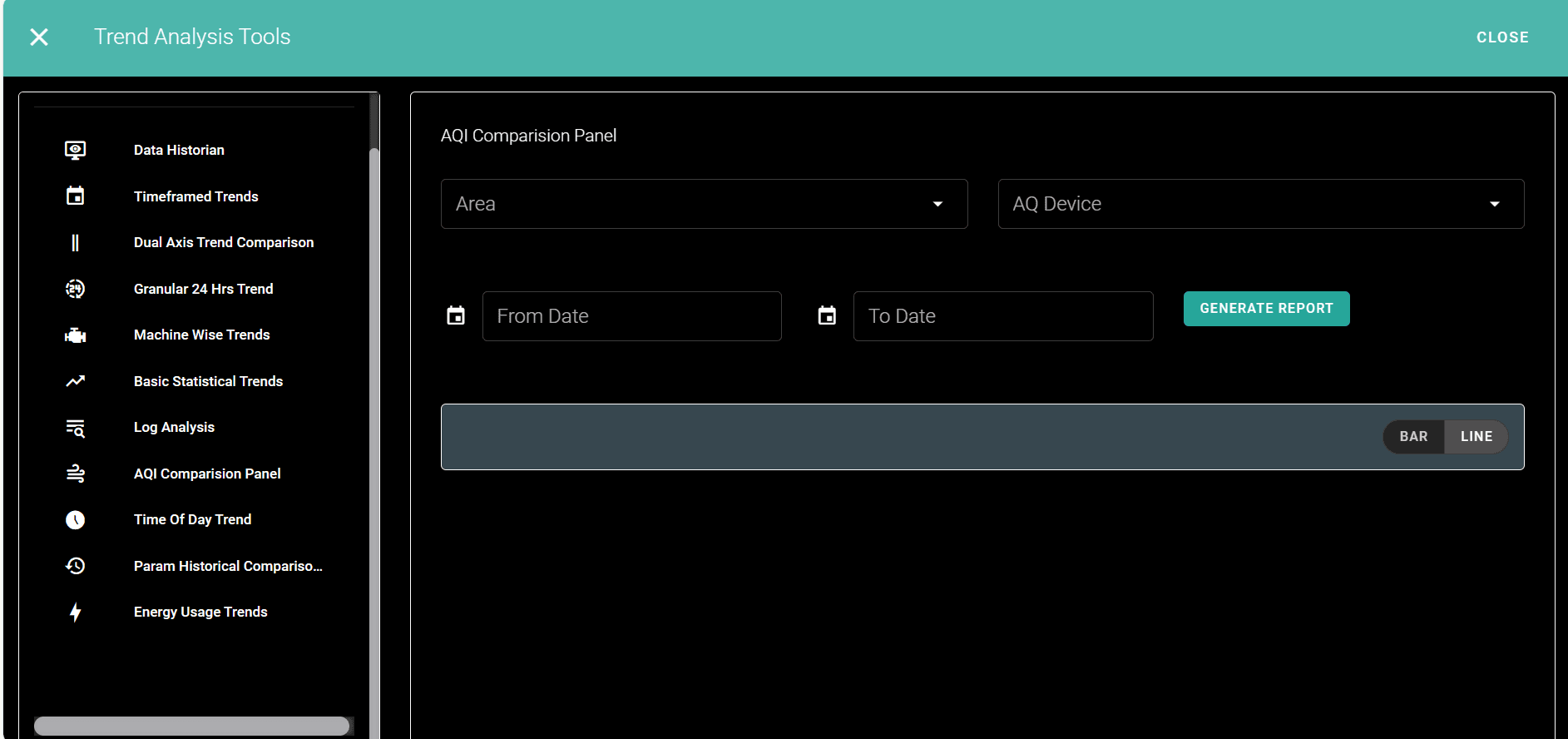

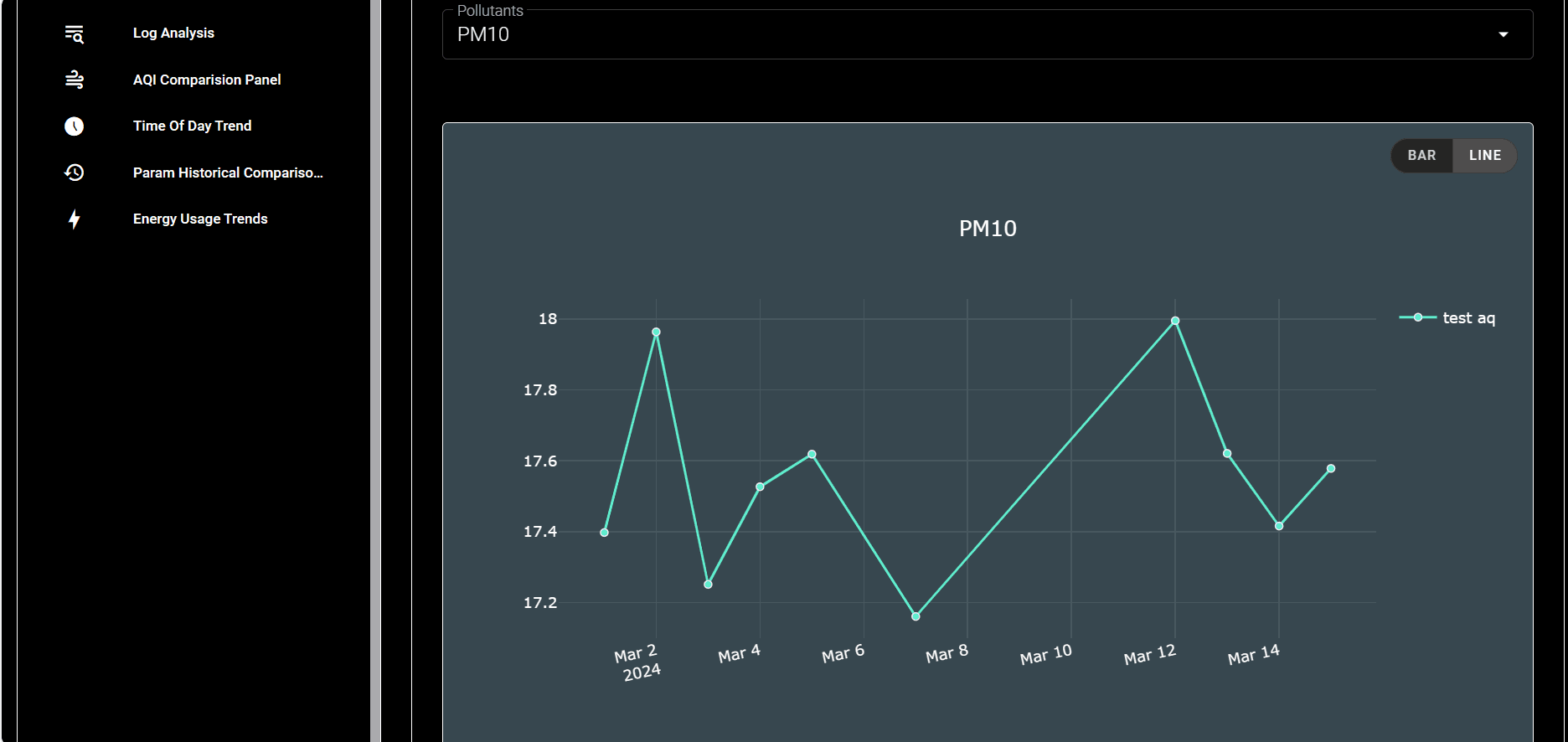

After filled all the details in that form such as,

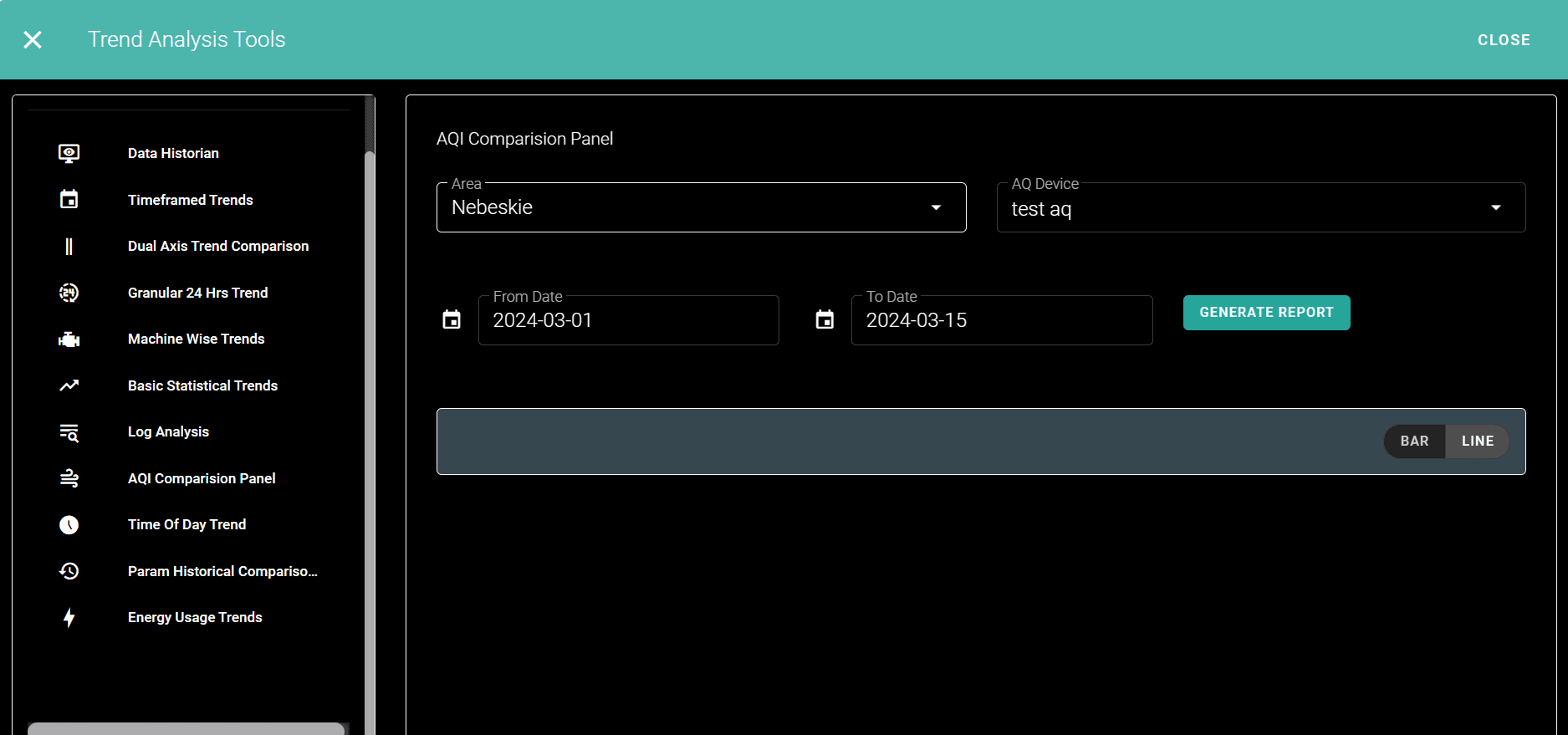

Then the form will look like given below

AQI Form.png AQI Filled form.png AQI Report
