Process Based Usage Sheet

The sheet is designed to share usage data for processes across multiple machines over various timeframes: Month-to-Date (MTD), Last Month-to-Date (LMTD), and Year-to-Date (YTD). Each process can be mapped to the sheet along with its respective machine parameters.

To create a Process Based Sheet, click on Process Based Usage Sheet. The below page appears.

Step 1

Here you need to fill in the Sheet Name, select your Time Frame, give your process a label, and select your process.

Add your Tag Types by clicking on Add Tag Types, then click Add Process to List. Your process will be added below. Finally, click Submit.

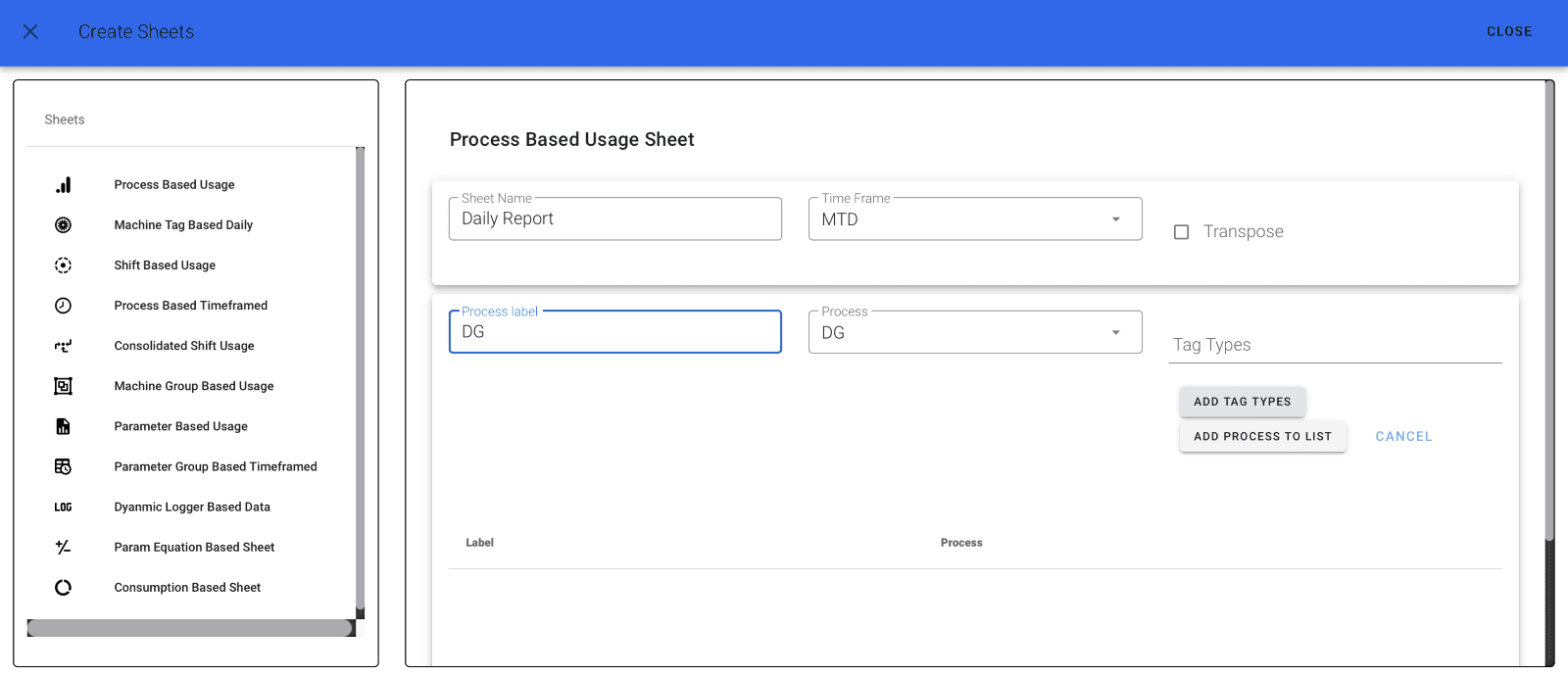

The following images will help you for better understanding.

Step 2

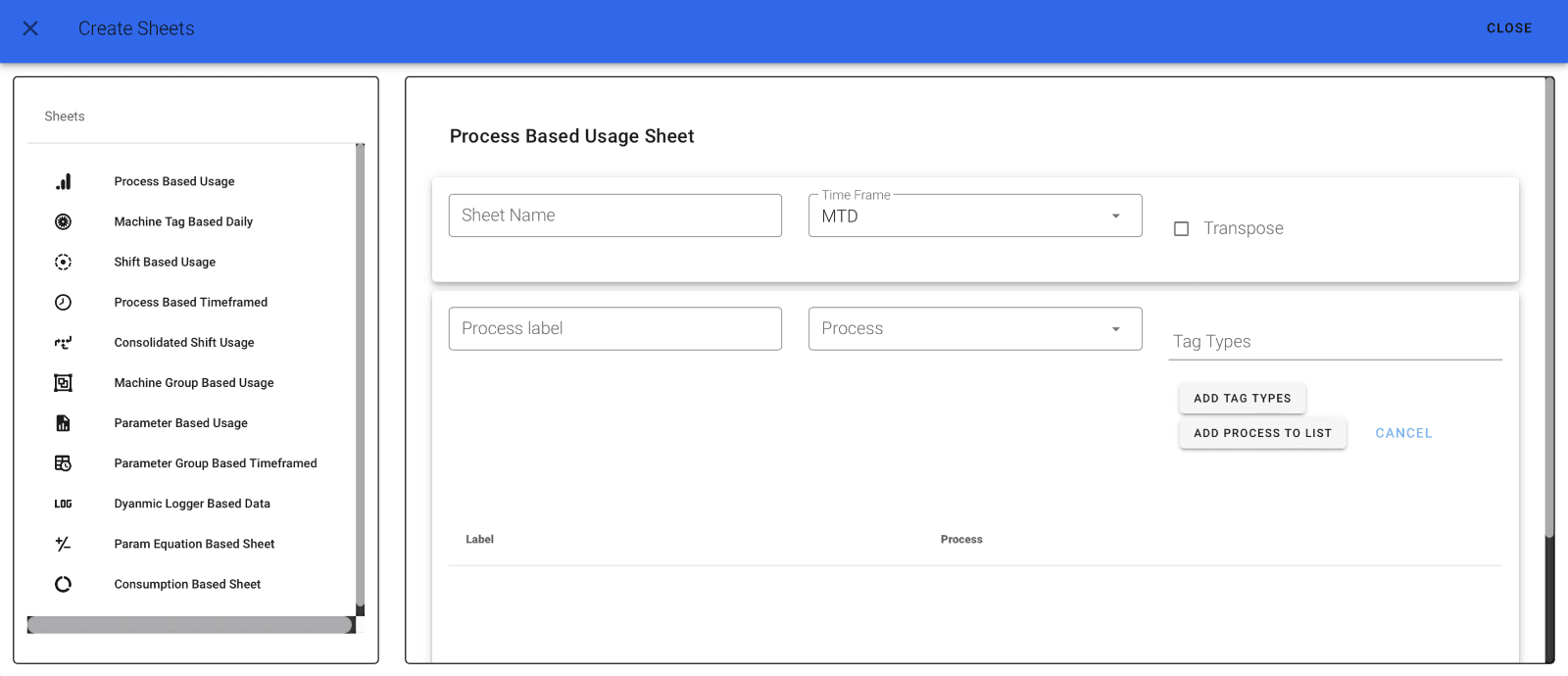

The page will look like the one shown below.

Step 3

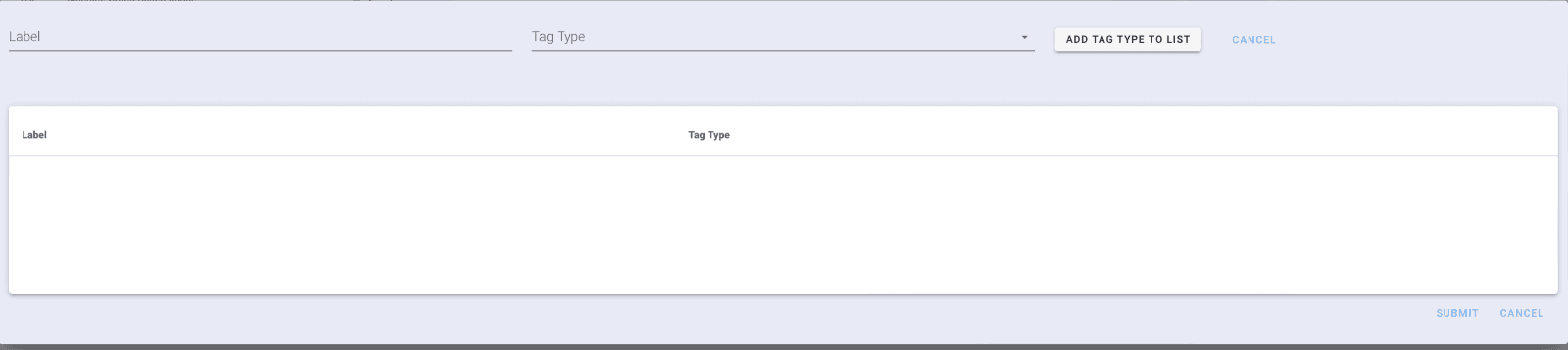

Add your Tag Types by clicking on ADD TAG TYPES button. A dialog box appears as shown below.

Fill in your Tag Label and select your Tag Type, then click on ADD TAG TYPE TO LIST.

Step 4

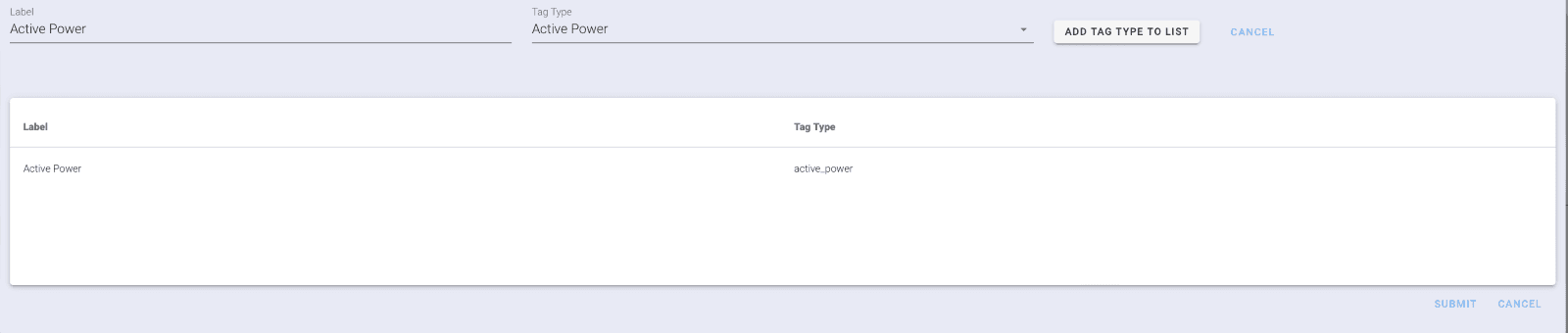

The below image shows how a tag type is added to the list.

Step 5

Now click on ADD PROCESS TO LIST to add the tag type list to the process.

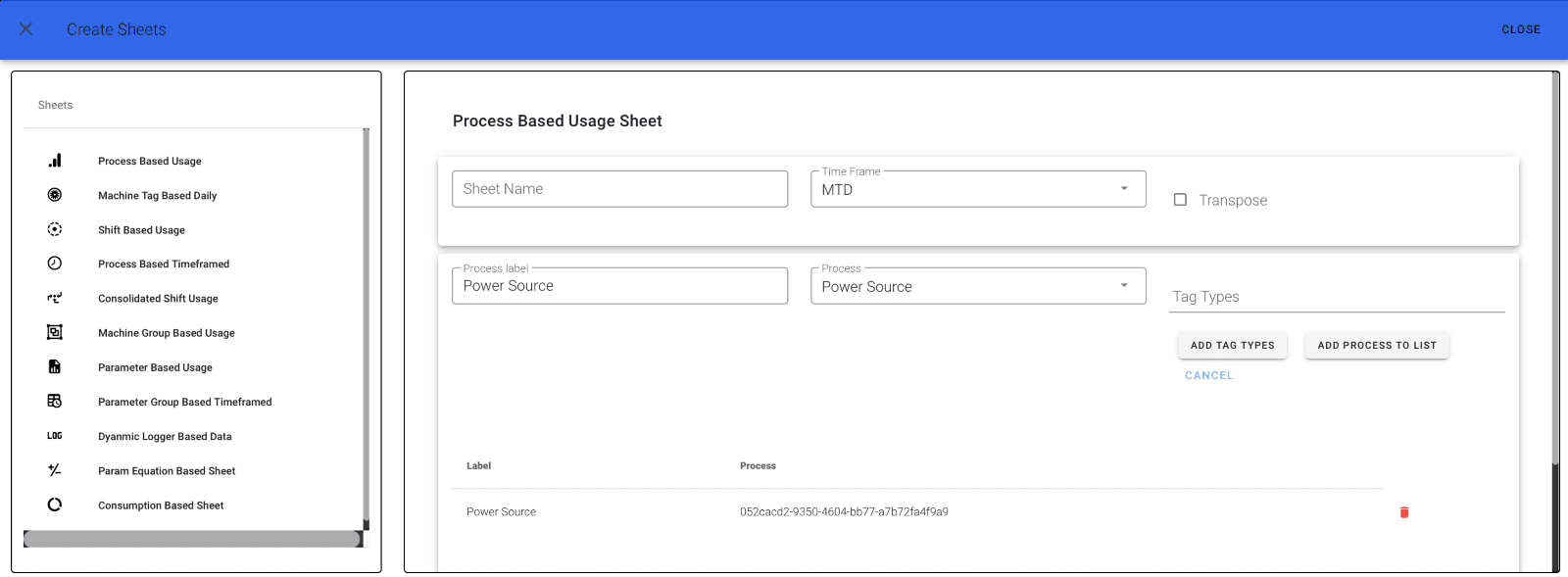

The image below shows how a tag type list is added to the process list. You can also delete your tag type.
Finally, click on Submit.

Step 6

A fully created Process Based Usage Sheet will look like this.
