Production Logs

Production logger is a type of logbook which tracks production input & output parameters. It is also capable of calculating the production based on the input & output parameters. Energy consumption can also be calculated by configuring the energy parameters. When both the energy and production computation is enabled, it also calculates the SEC (specific energy consumption). This logbook is typically used to capture production over a group or individual machines. In case a group of machine is getting utilized, the final output to be from a single machine (this is used for group of machines in a single line).

Steps to Configure:

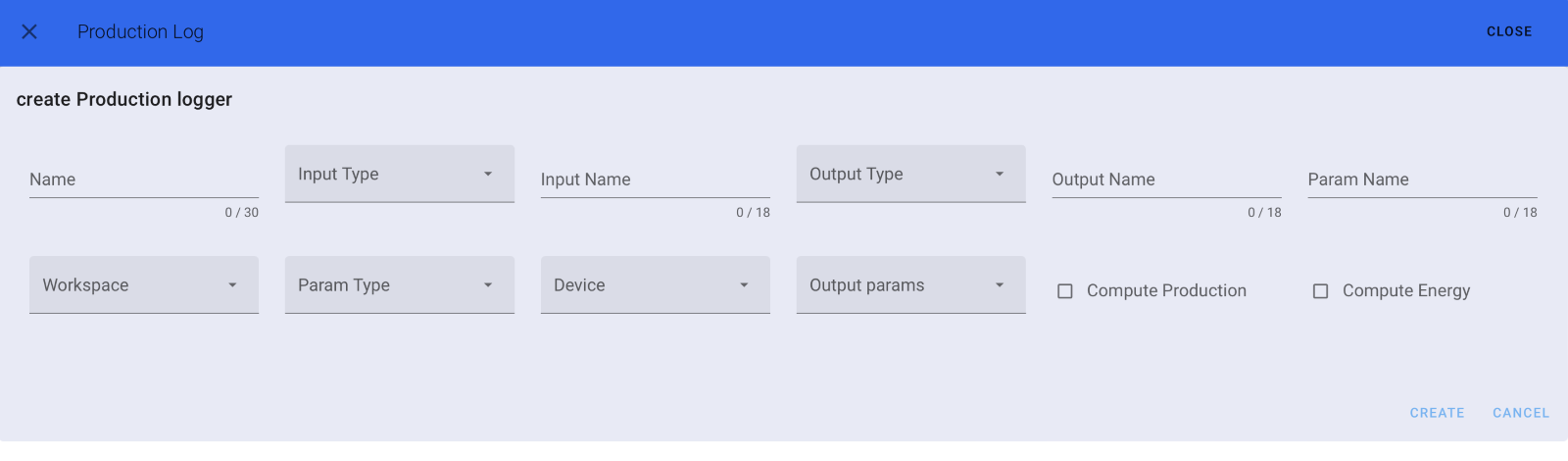

1. Step 1: Select Production logger in the screen
2. Step 2: Give a Name to the logbook
3. Step 3: Select the input type (List or Text)
4. Step 4: Give input name
5. Step 5: Select output type (List or Text)
6. Step 6: Give an Output name
7. Step 7: Enter parameter name
8. Step 8: Select the workspace, Parameter Type & Device
9. Step 9: Select output parameter
10. Step 10:
    • If you select the checkbox for “Compute Production,” it will enable you to choose the Production operation and Production factor.
    • If you select “Compute Energy,” it will enable you to choose the Energy parameter type, Workspace, Energy Device, and Energy Parameter.
11. Step 11: Once you have filled in all the required details, select the Submit option.
