Machine Tag Based Daily Sheet

This sheet also allows mapping various machines with different tag types across different processes, which can be consolidated for the configurable shift report.

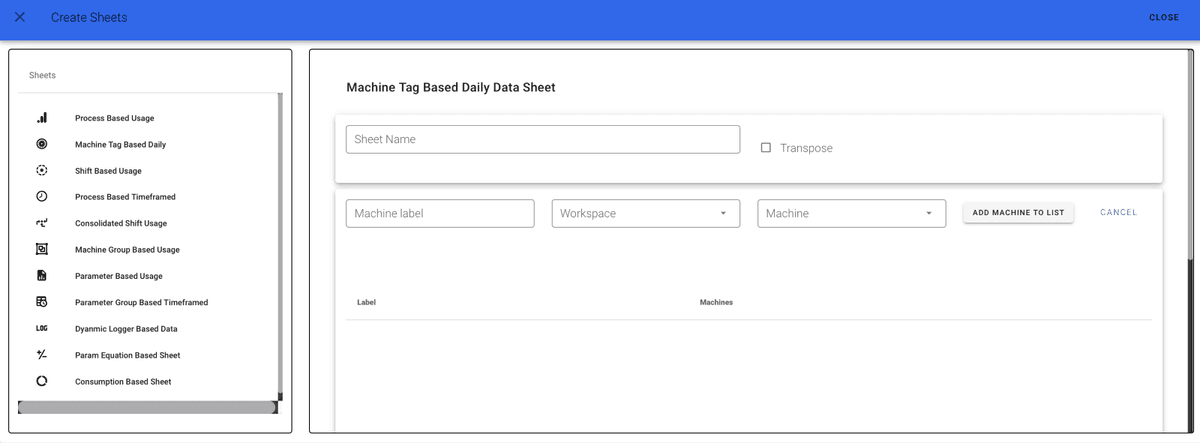

To create a Machine Based Work Production Sheet, click on Machine Tag Based Data Sheet. The following page will appear:

Here you need to fill in the Sheet Name, Machine Label, select your Workspace and Machine, and click on the ADD MACHINE TO LIST button. Your machine will be added.

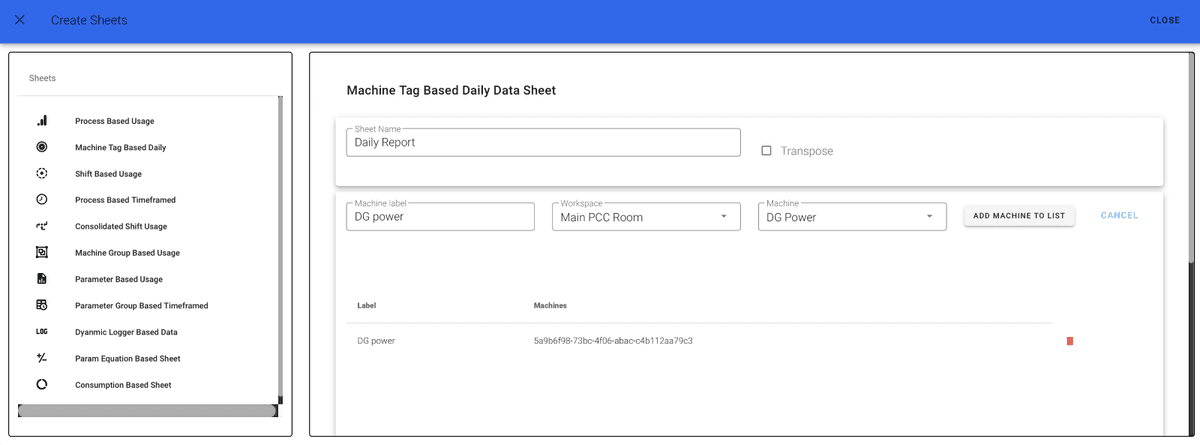

The page will look like the one below:

You also need to add Tag Types to the machines. To do so, fill in the Label, select the Tag Type, and click on the appropriate button. Finally, click on ADD TAG TYPES TO LIST and then Submit.

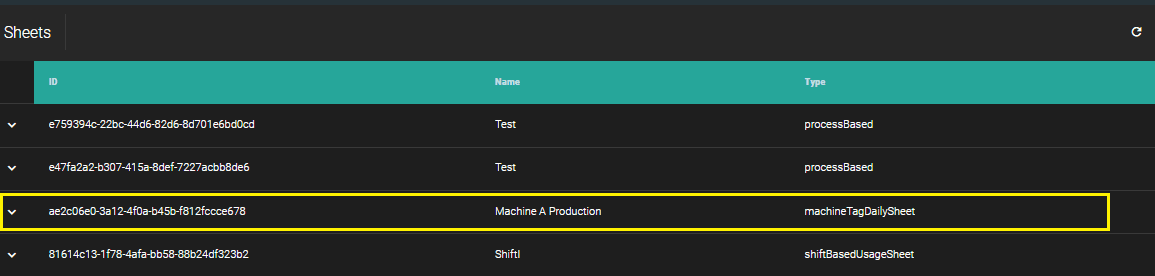

A fully created Machine Tag Based Daily Sheet will look like this.
