Batch Production Logger

Batch Production Logger is a type of logbook used for tracking batch production. It has the capability of auto-generating Batch IDs and provides a dynamic parameter list to be logged during the batch production process.

This logger is an extension of the Batch Tracking (Traceability) module in Enture. It automatically links with the batch tracking module, allowing any produced batch to be tracked and managed efficiently.

Multiple batch loggers can be created with separate Location IDs to replicate the different machines or process locations within a manufacturing unit or factory.

Steps to Configure

Once you select the Batch Production Logger, you will see a screen like the one below:

Create Combo Param

Follow the steps below:

  1. Give a name for the log – this will appear as the header of the file.
  2. Field Name: The name of the data entry field.
  3. Field Type:
    • List: Choose from existing options. These options can be created in the Derive Tab.
    • Text: Manually enter the value or data.
  4. Click the Add button to add the field details.
  5. Once all details are entered, click the Submit button.

Steps to Edit the Logger

  1. Click on the created Batch Production Logger.
  2. A new tab will open. Click the pencil icon to start editing.
  3. You can edit:
    • The name of the logger.
    • All other field details you had entered during creation.
  4. To remove unnecessary fields, use the delete option beside each field.
  5. After completing your changes, click the Submit button to save them.
Create Combo Param

Write in Log Option

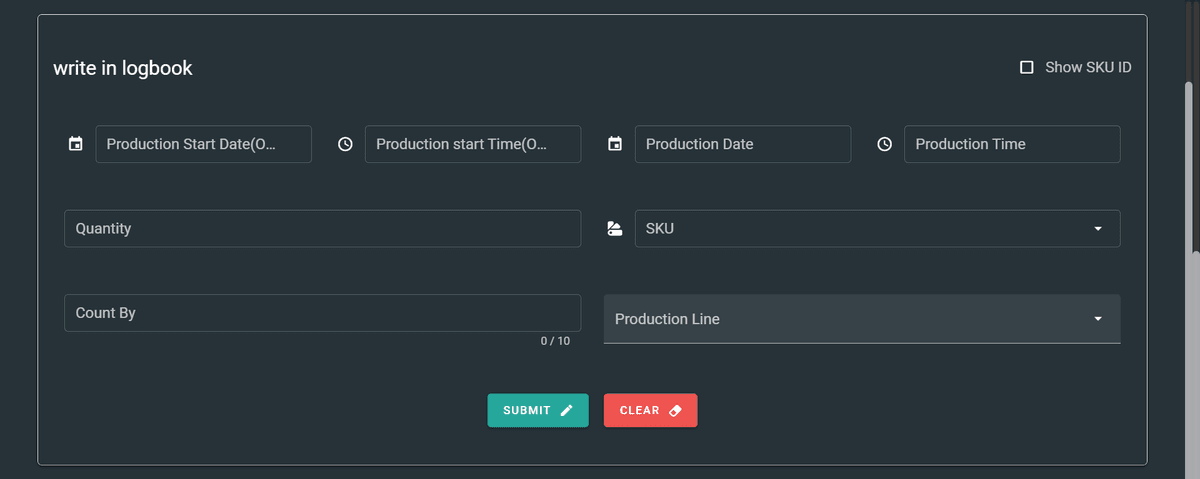

Next, you will see the Write in Log option where you can create the log entries.

Create Combo Param
  • Enter all required details such as:
    • Production start time and end time
    • Date of the log
    • Shift, Machine, SKU, etc.
  • Once all details are entered, click the Submit button.

Your log will be written.

Next, you will see the table as shown below:

Create Combo Param

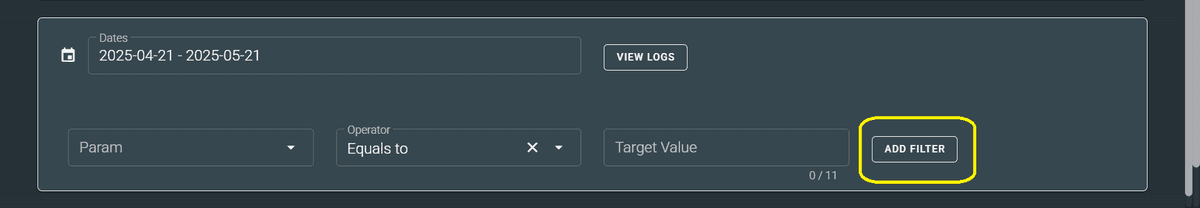

  • Choose the date(s) and click “View Logs”.
  • Logs written under the selected date will be displayed.
  • Use the “Add Filter” option to:
    • Enter a parameter
    • Choose an operator
    • Enter a target value
  • You will see logs that match your filter conditions.
